Celebrating Coach House’s 40th anniversary, the limited-edition Heritage redefines luxury travel with

a thoughtful blend of design, functionality, and comfort.

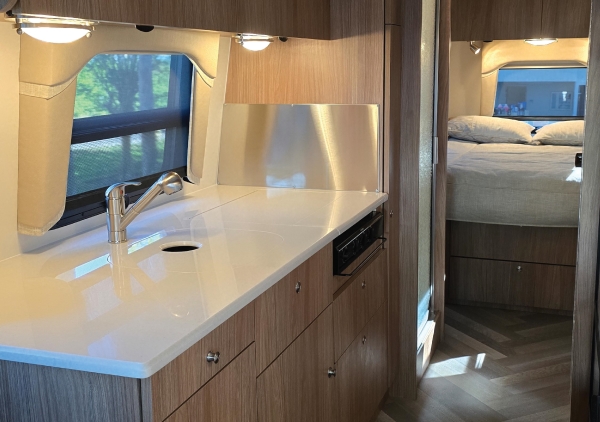

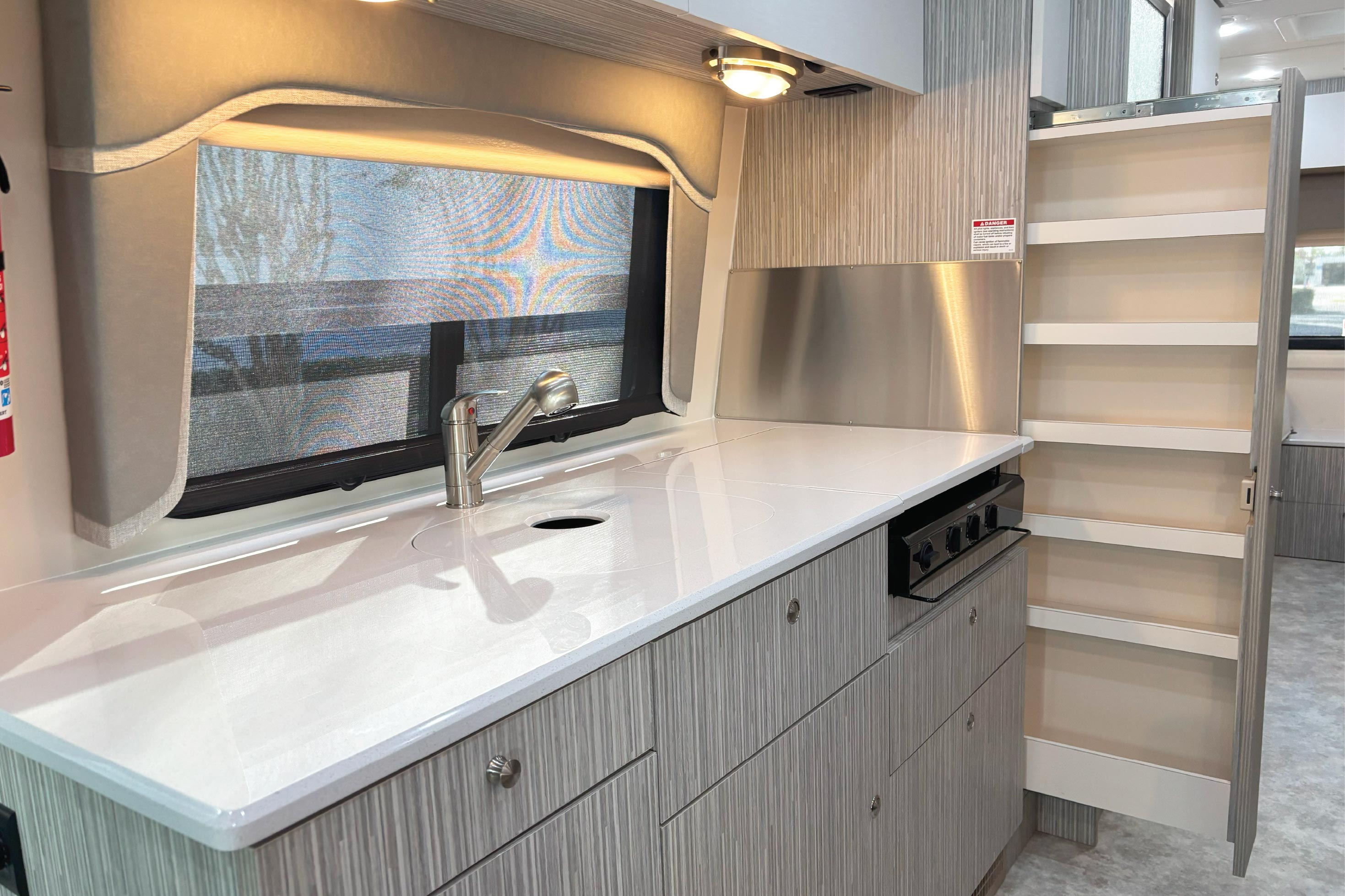

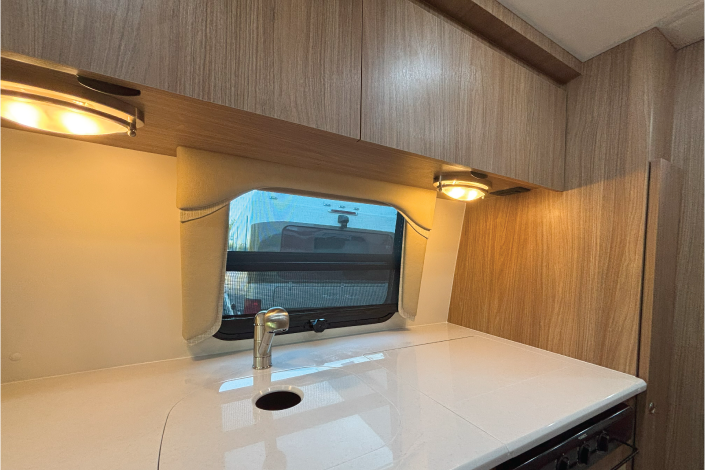

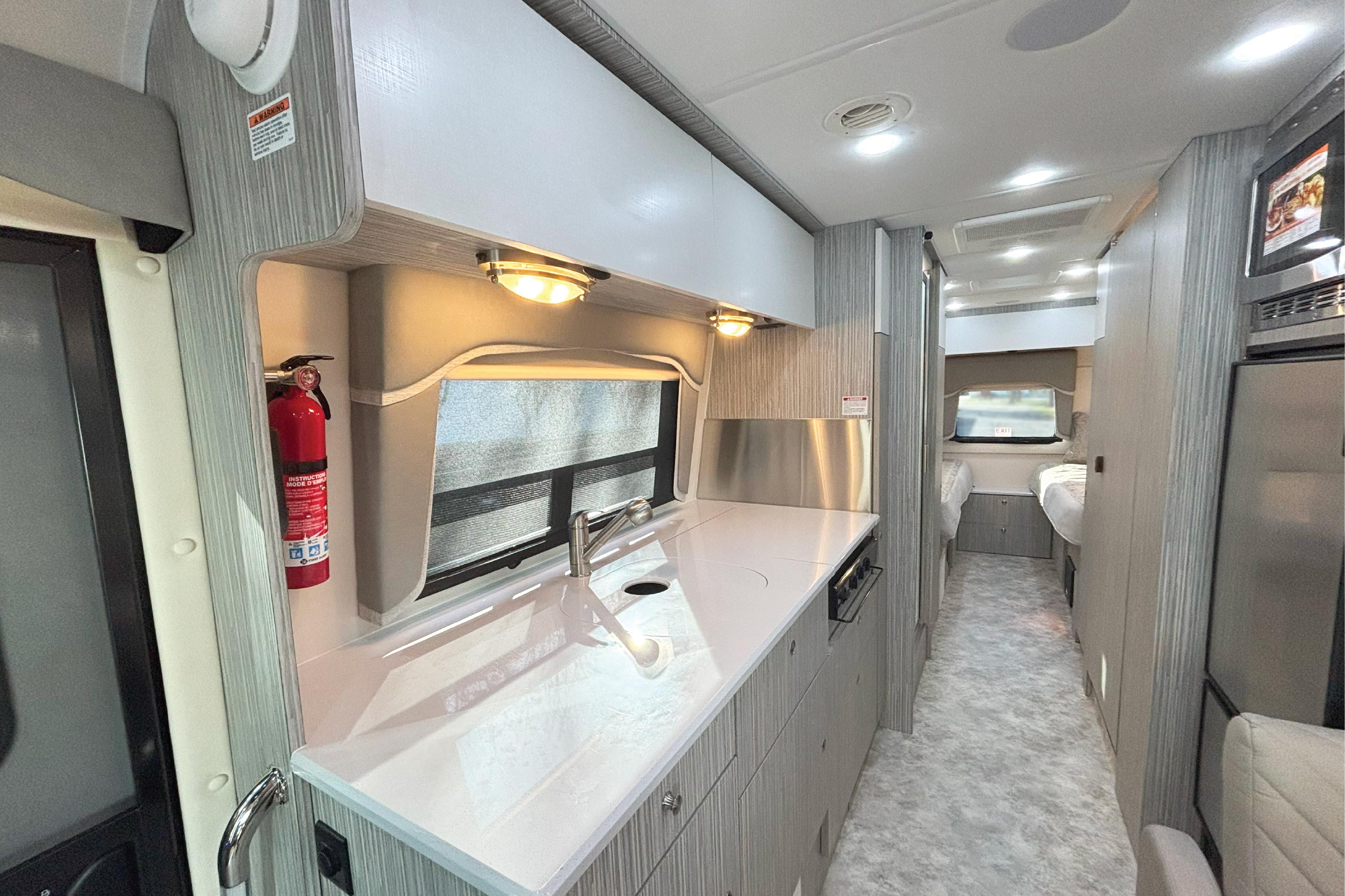

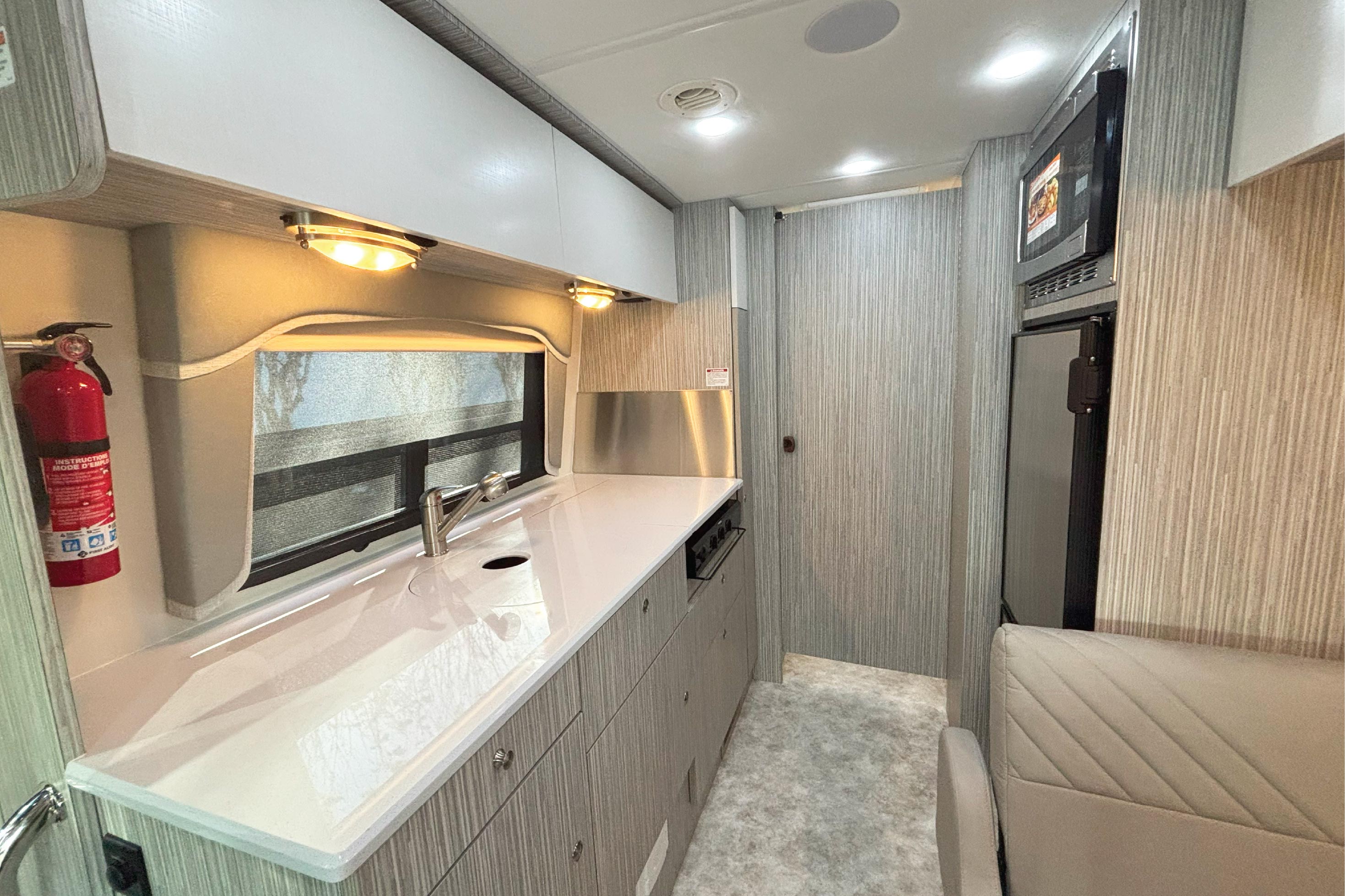

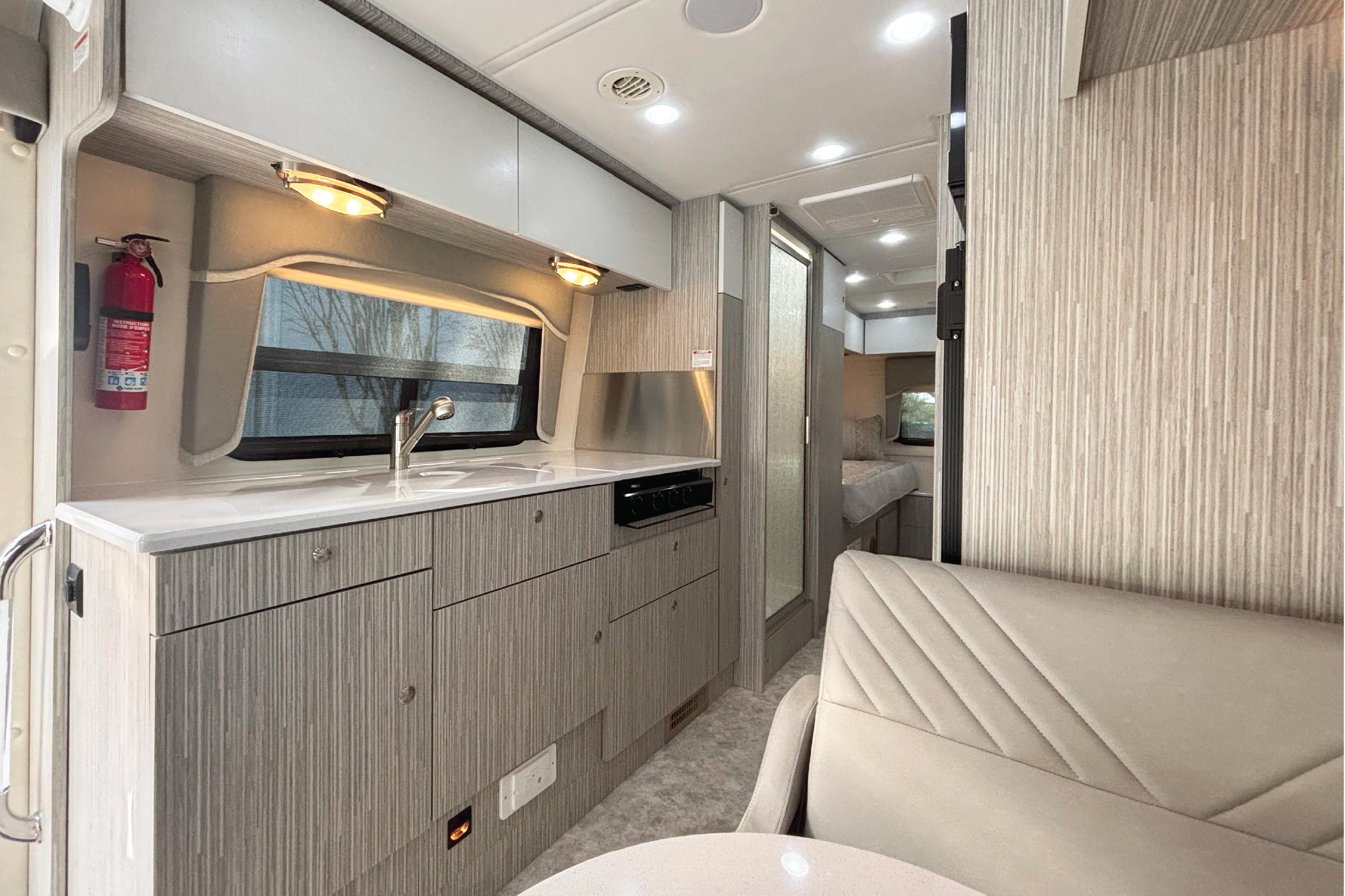

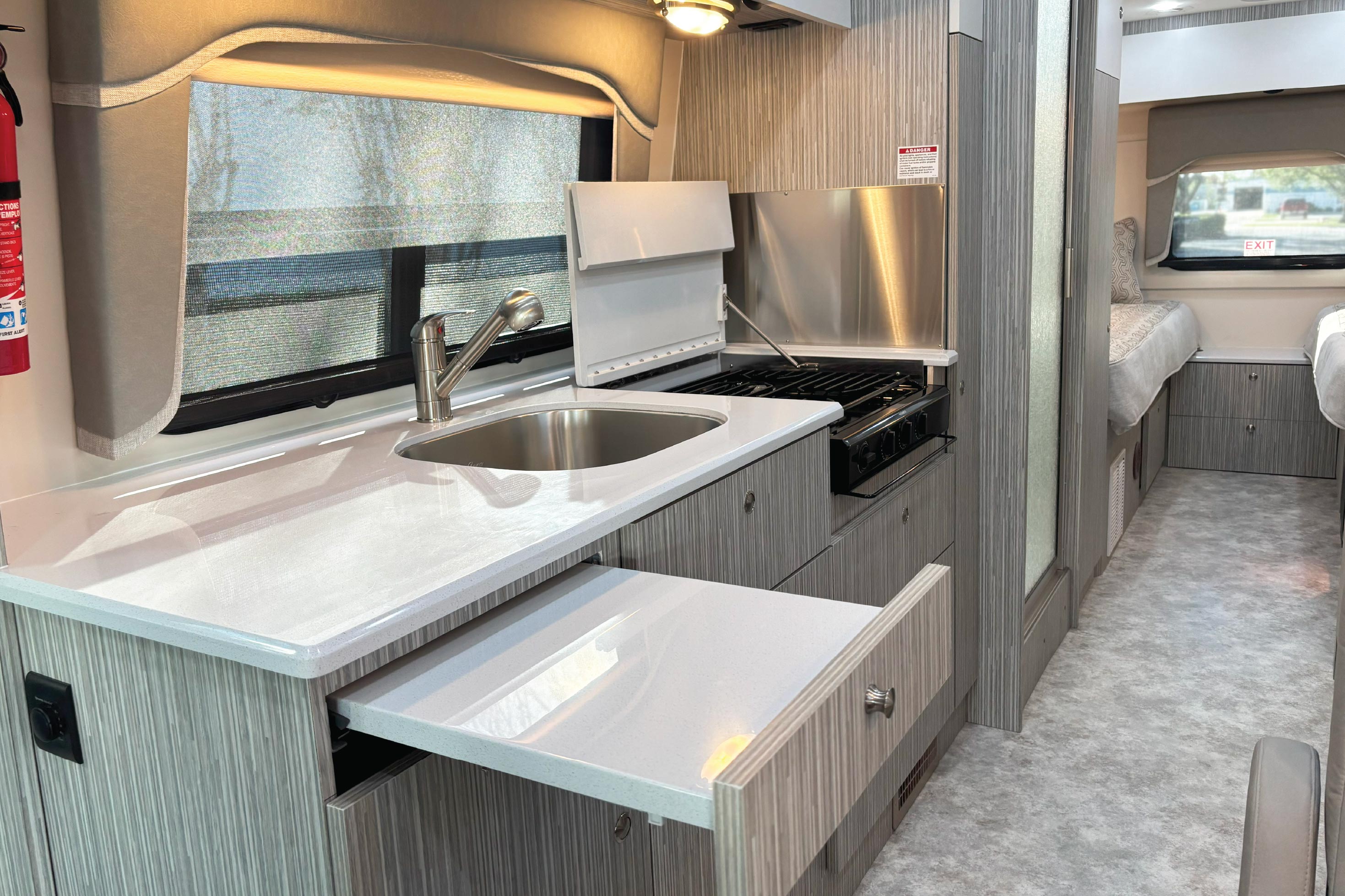

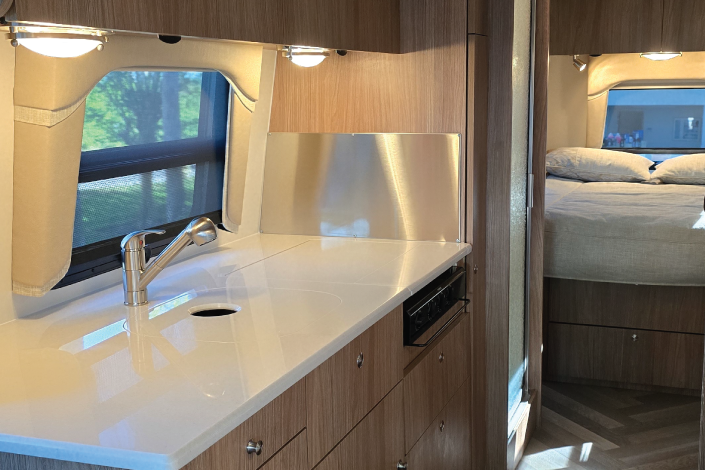

Every detail, especially in the galley, is crafted for style and practicality—featuring spacious Corian countertops,

a sleek three-burner stove with a custom lid, and secure latched cabinetry for a streamlined look.

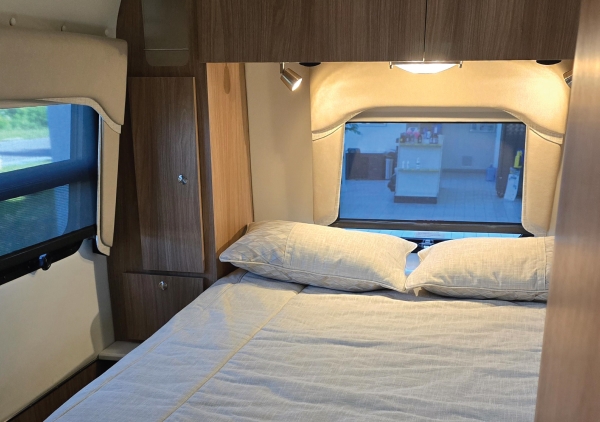

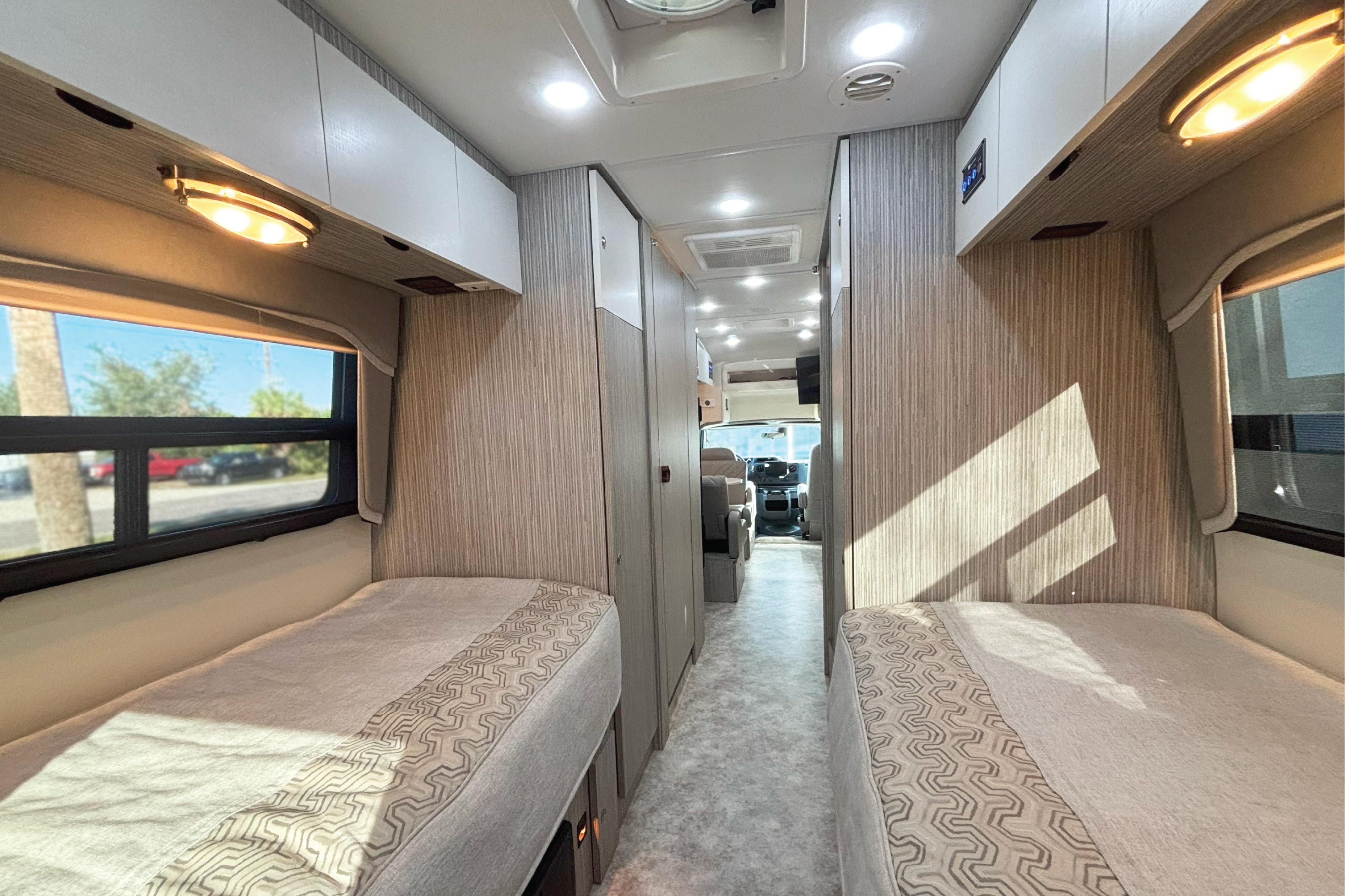

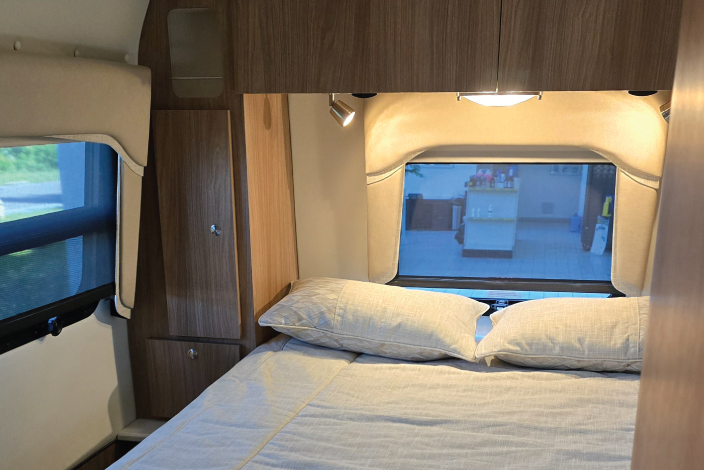

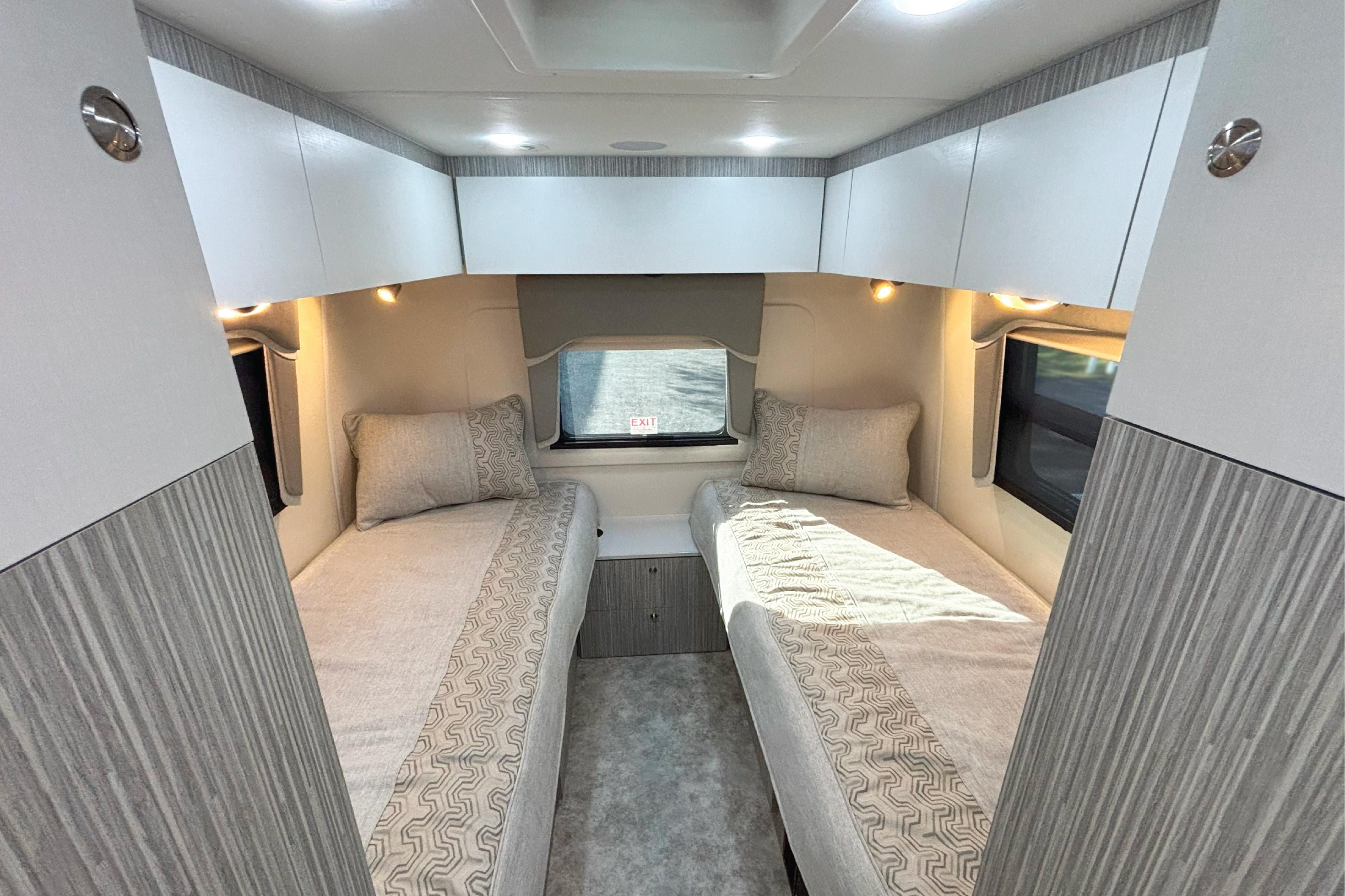

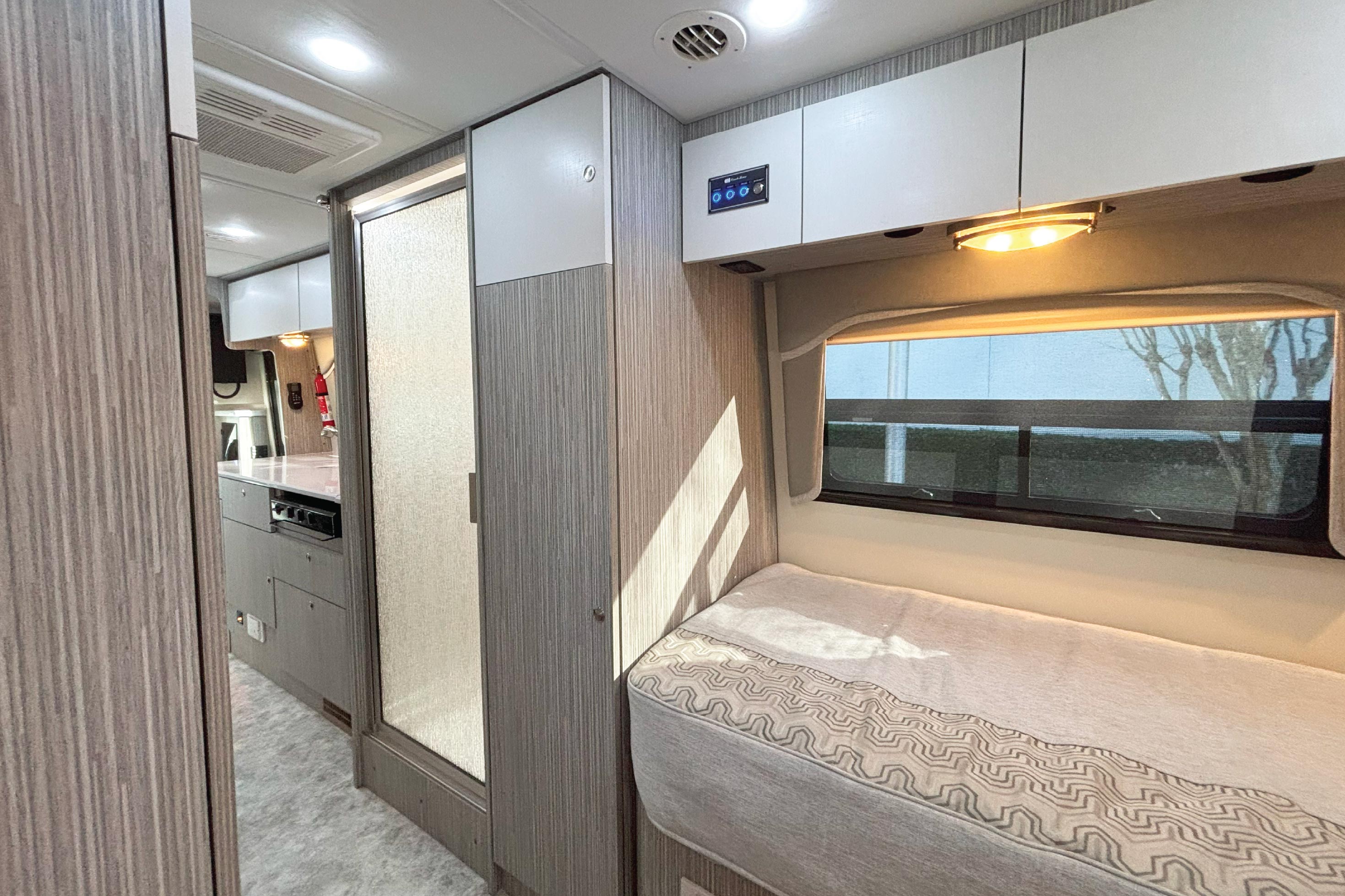

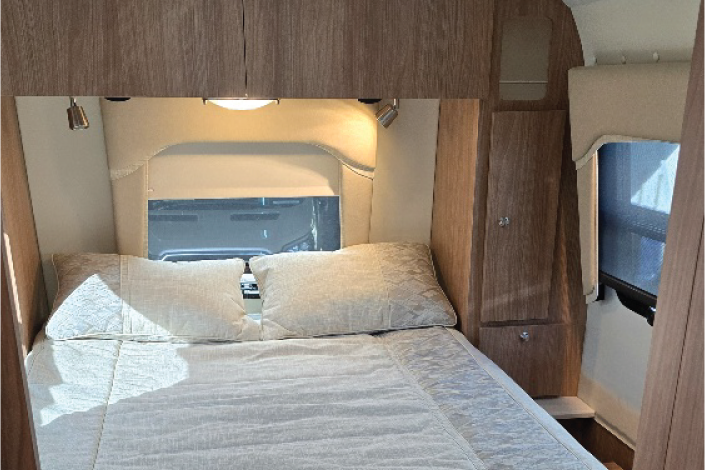

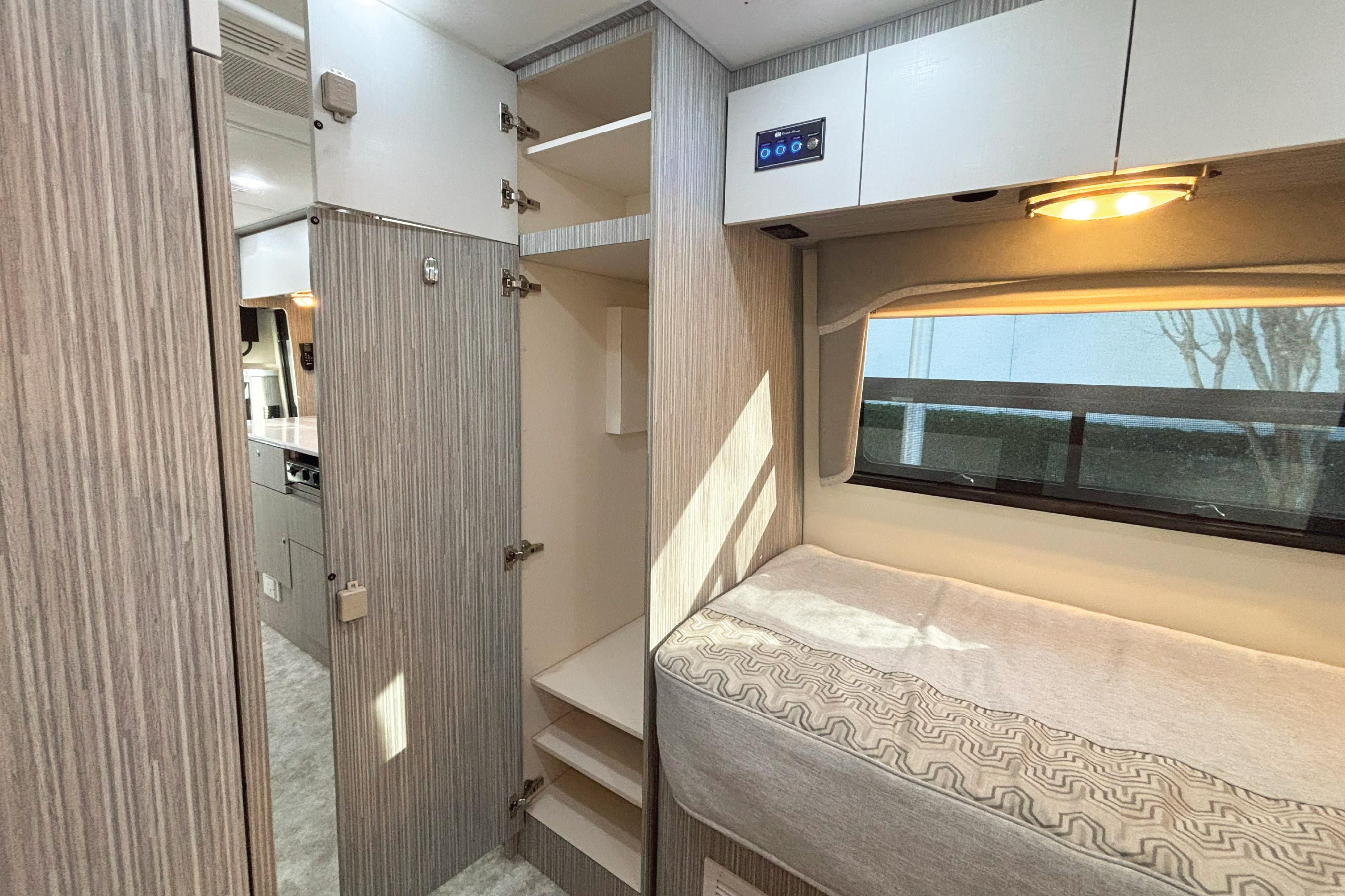

Choose between twin beds or an island queen with two elegant cabinet color variations and no-cost exterior paint options

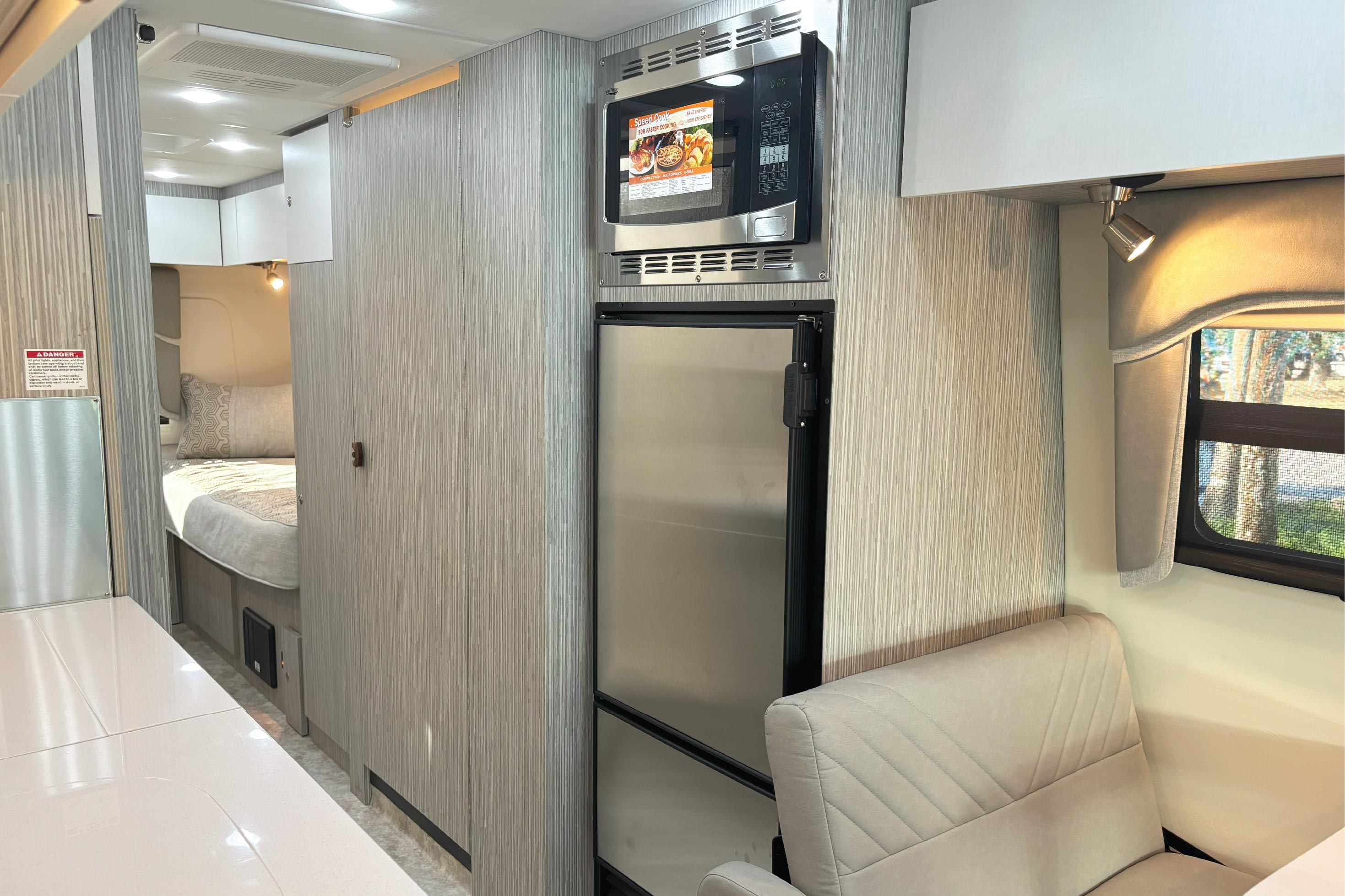

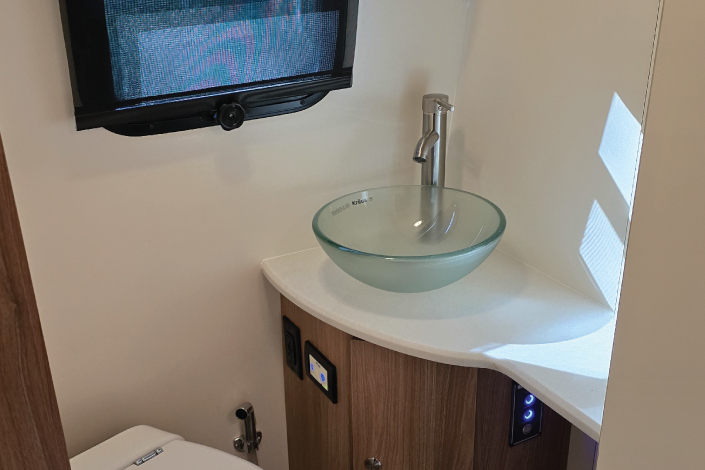

for a modern, sophisticated touch. The split dry bath adds privacy, while two refrigerator options—Dometic absorption or

AC/DC NovaCool—cater to different travel needs.

The new Hybrid RV conversion system powers appliances off-grid, with a traditional generator option for extended trips.

Thoughtful features like a dedicated garbage can and a spacious pantry enhance convenience, making the Heritage a true home on wheels.

Browse Floorplans

Click the Floorplan for More Details

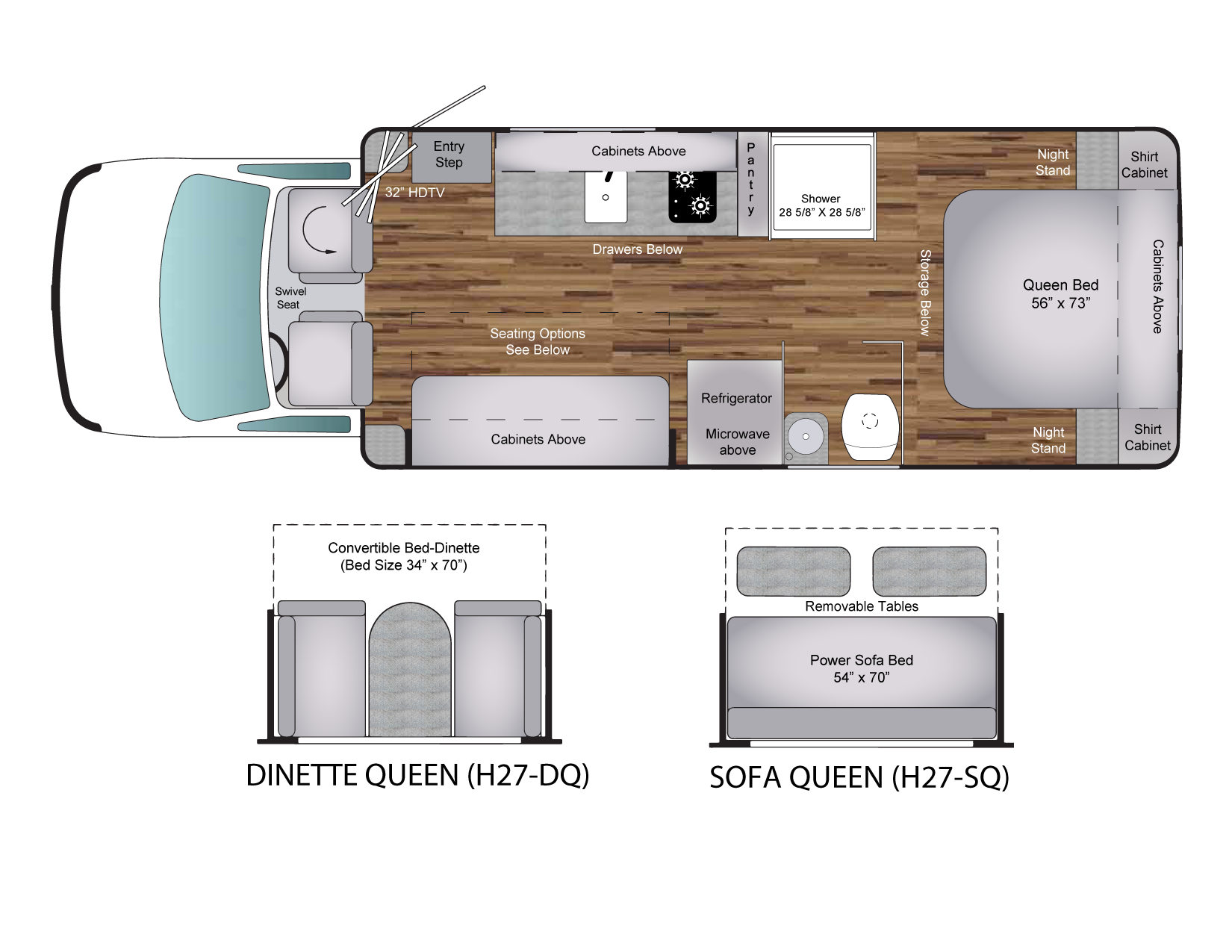

Heritage (Queen)

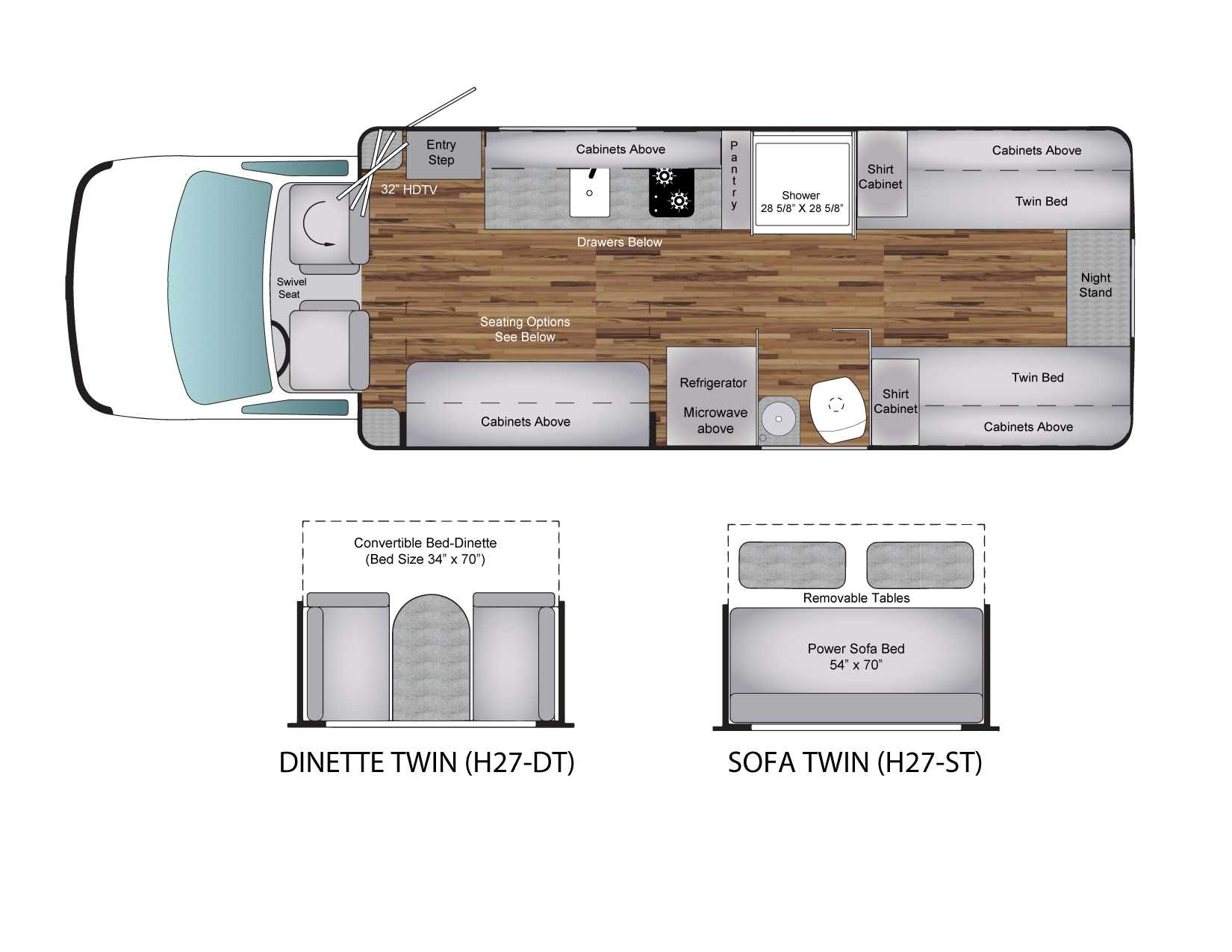

Heritage (Twin)

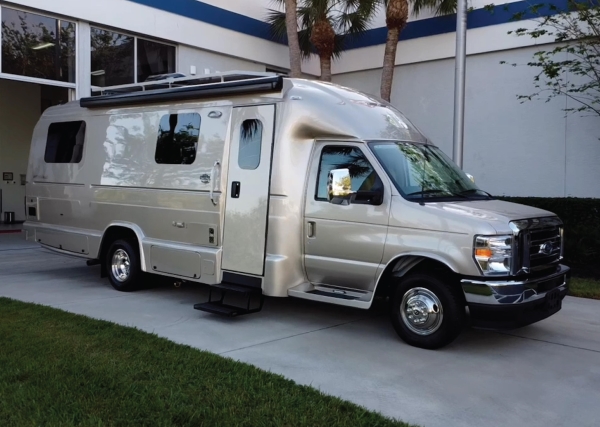

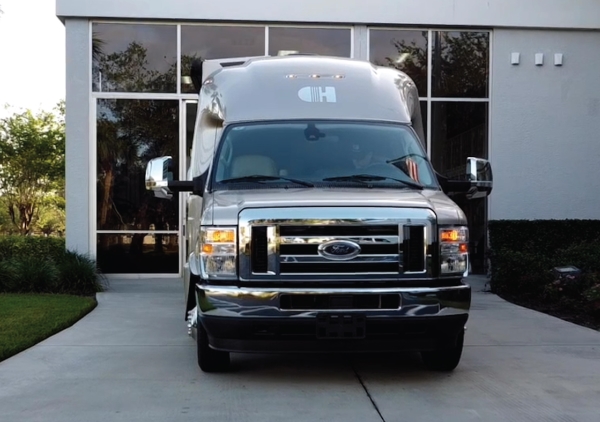

Platinum 220 Exterior Side View Passenger

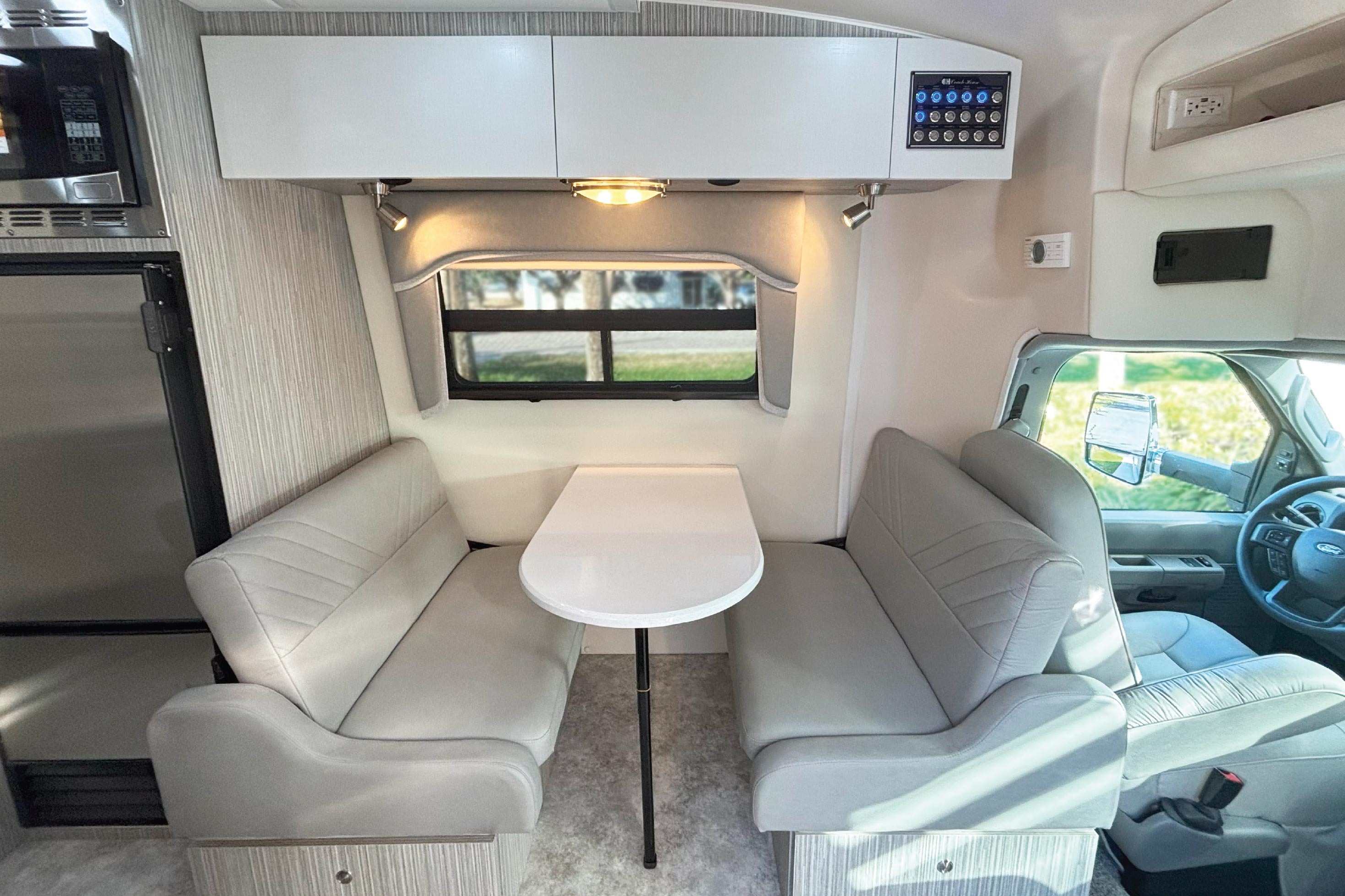

A Look Inside The Heritage

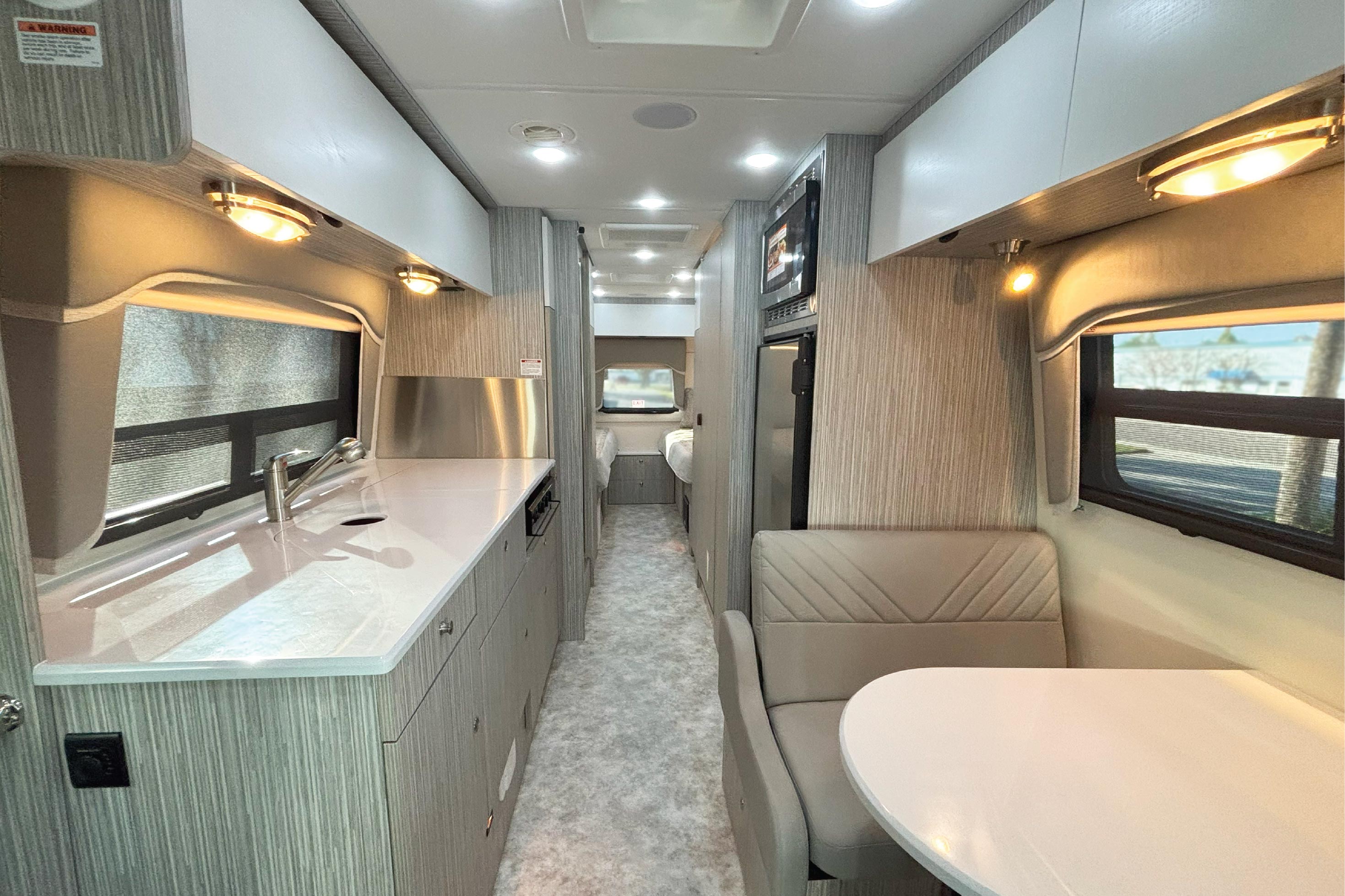

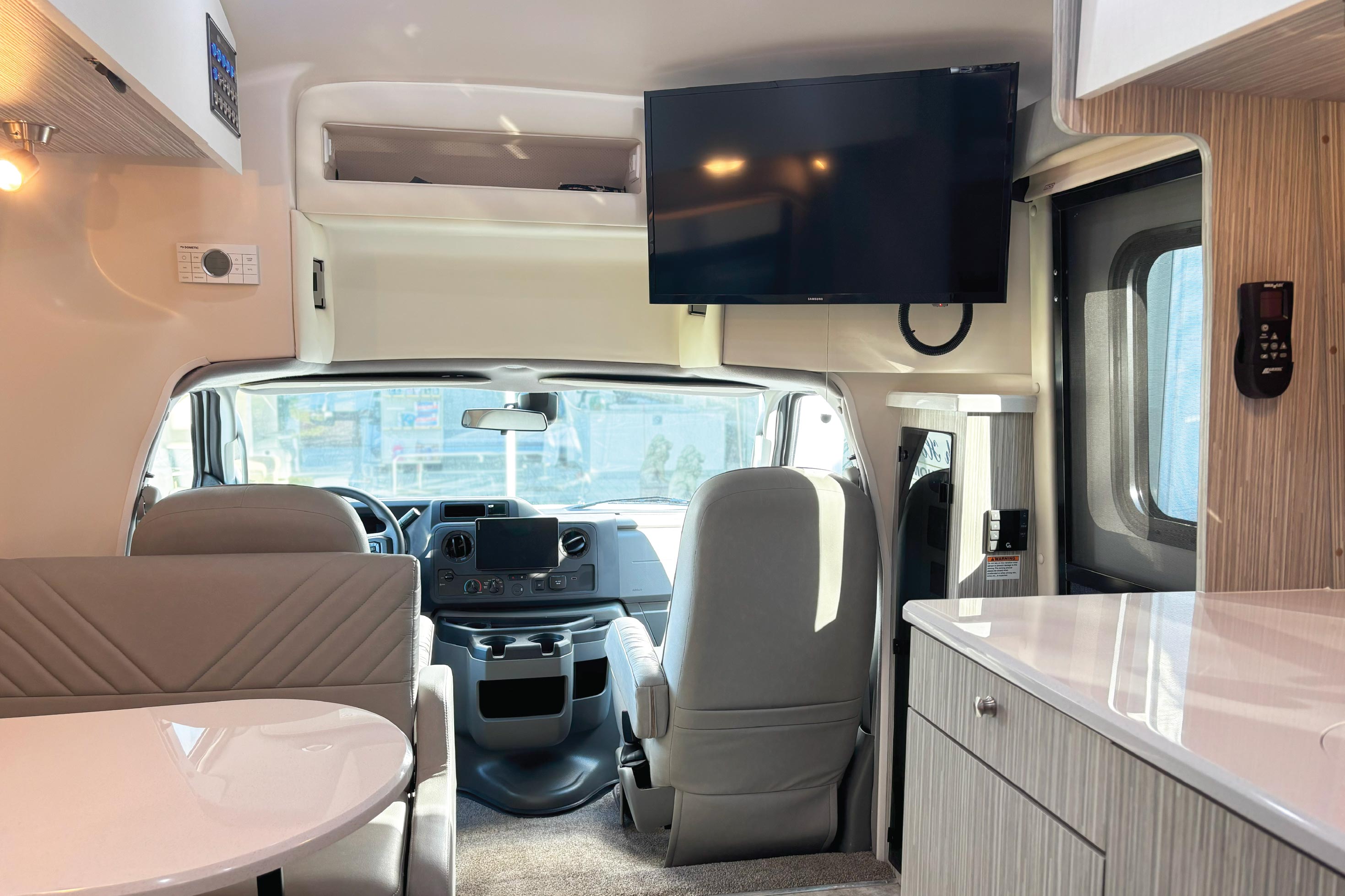

Step inside the limited-edition Coach House Heritage and see what sets it apart. This special model celebrates 40 years of craftsmanship, combining advanced technology with refined design. From its expansive living space to the modernized interior finishes, every detail is built for comfort and convenience. Whether you're drawn to its versatile floorplan options or the freedom of the new Hybrid RV conversion system, the Heritage is designed to elevate your travels. Watch the video to experience the next generation of luxury motorhomes!

View All Videos

Heritage Specifications and Features

Interior
Exterior
Heating & Cooling
Galley
Plumbing
Electrical
Dimensions
Tank Capacity

INTERIOR	H27 (TWIN)	H27 (QUEEN)
Walnut or Silver Oak Cabinet Finish	S	S
Upper cabinet doors in contrasting finish	O	O
Large overhead and wardrobe storage	S	S
Solid-surface counter tops	S	S
Flat-panel HD TV w/swing arm	S	S
MCD day/night shade system	S	S
Premium floors	S	S
Medicine cabinet	S	S

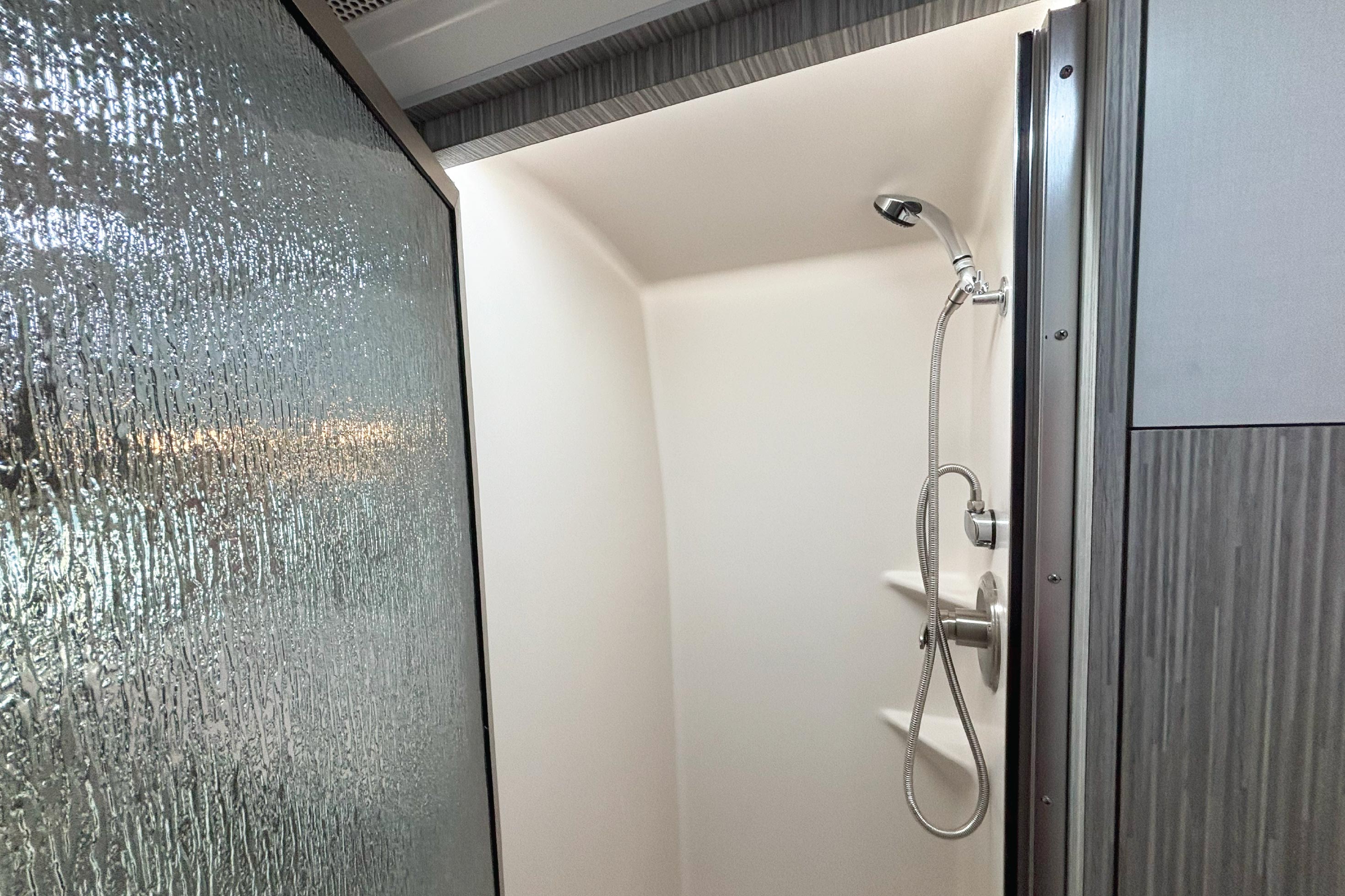

Separate stand-up shower	S	S
Hybrid Mattresses	S	S
Sound bar for front TV	O	O
Flat-panel HD TV in bedroom	O	O

EXTERIOR	H27 (TWIN)	H27 (QUEEN)
Patented one-piece fiberglass body with carbon-fiber reinforcement	S	S
Electric entry step with light	S	S
HD TV antenna / with Wi-Fi	S	S
Heavy duty trailer hitch	S	S
Exterior fiberglass storage compartments	S	S
1.5-inch square-tube aluminum floor frame	S	S
Stainless steel wheel simulators	S	S
Exterior hot and cold shower	S	S
Full-size heavy duty side entry door with screen	S	S
Cable TV jack	S	S
Automatic hydraulic leveling system	O	O
MOR/ryde rear suspension	S	S
Frameless jalousie windows	S	S
Rear protective skid wheels	S	S
Legless power awning w/ LED lights	S	S
One color full body paint (Harbor or Dune)	S	S
Safety-Plus	S	S
Alcoa aluminum rims	O	O

HEATING/COOLING	H27 (TWIN)	H27 (QUEEN)
15,000-Btu ducted roof air conditioner w/ heat pump	S	S
30,000-Btu auto LP gas furnace (19,000 BTU Arriva)	S	S
Two power roof vents with covers	S	S
Heavy-duty insulation	S	S
Heated holding tanks	S	S

GALLEY	H27 (TWIN)	H27 (QUEEN)
Three Burner LP gas stove	S	S
Single Burner Induction Cook-top	O	O
Stainless convection/microwave oven	S	S
Recessed stainless kitchen sink w/cover	S	S
2-way AC/LPG absorption refrigerator	S	S
2-way AC/DC compressor refrigerator	O	O
Spacious pantry	S	S

PLUMBING	H27 (TWIN)	H27 (QUEEN)
4 Season all-weather interior plumbing	S	S
Large propane tank	S	S
External quick disconnect for LPG grill	S	S
On-demand propane water heater	S	S
Porcelain macerator toliet	S	S
Demand fresh water system	S	S
City water connection	S	S
Black Water Flush	S	S

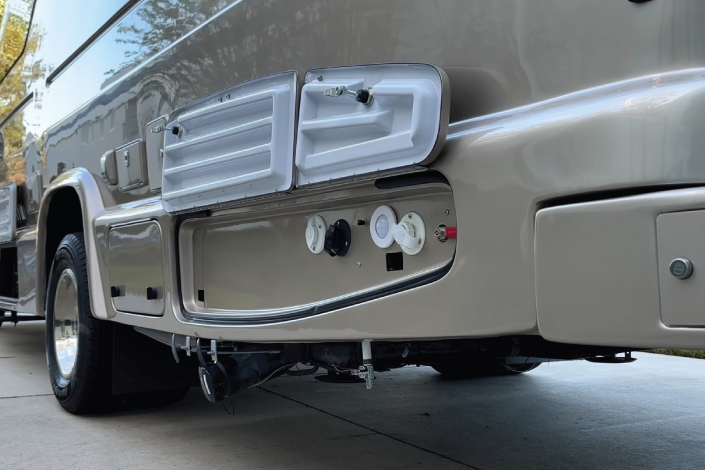

Universal utility compartment	S	S

ELECTRICAL	H27 (TWIN)	H27 (QUEEN)
110v/12v 45-amp converter	S	S
Ample 110v outlets (some with USB)	S	S
4.0kw generator	S	S
Interior and exterior LED lighting	S	S
Carbon monoxide, LP gas, and smoke detectors	S	S
Emergency start switch	S	S

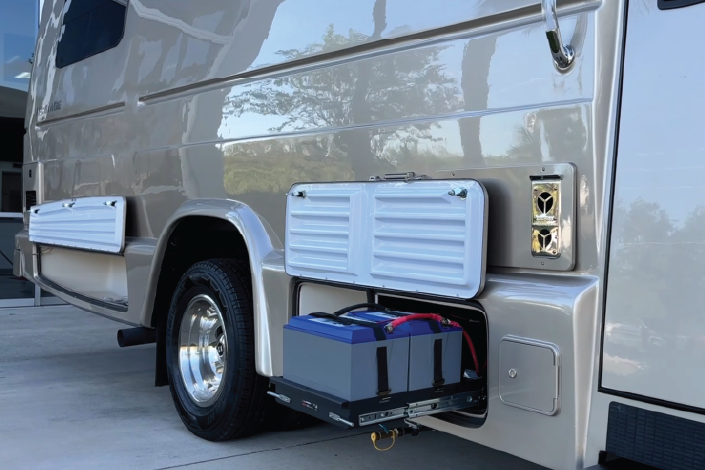

Lithium Ion Battery System	S	S
600 Amp Hybrid Lithium Battery System	O	O
Auxiliary battery disconnect	S	S
25-foot shore power cord	S	S
Exterior 110v outlet	S	S
Porch, compartment, and entry lights	S	S
Navigation system	S	S
2000 Watt pure sine wave inverter	S	S
Color back-up video camera and monitor	S	S
XM/Sirius satellite radio-ready	S	S
200-watt solar battery charger	S	S

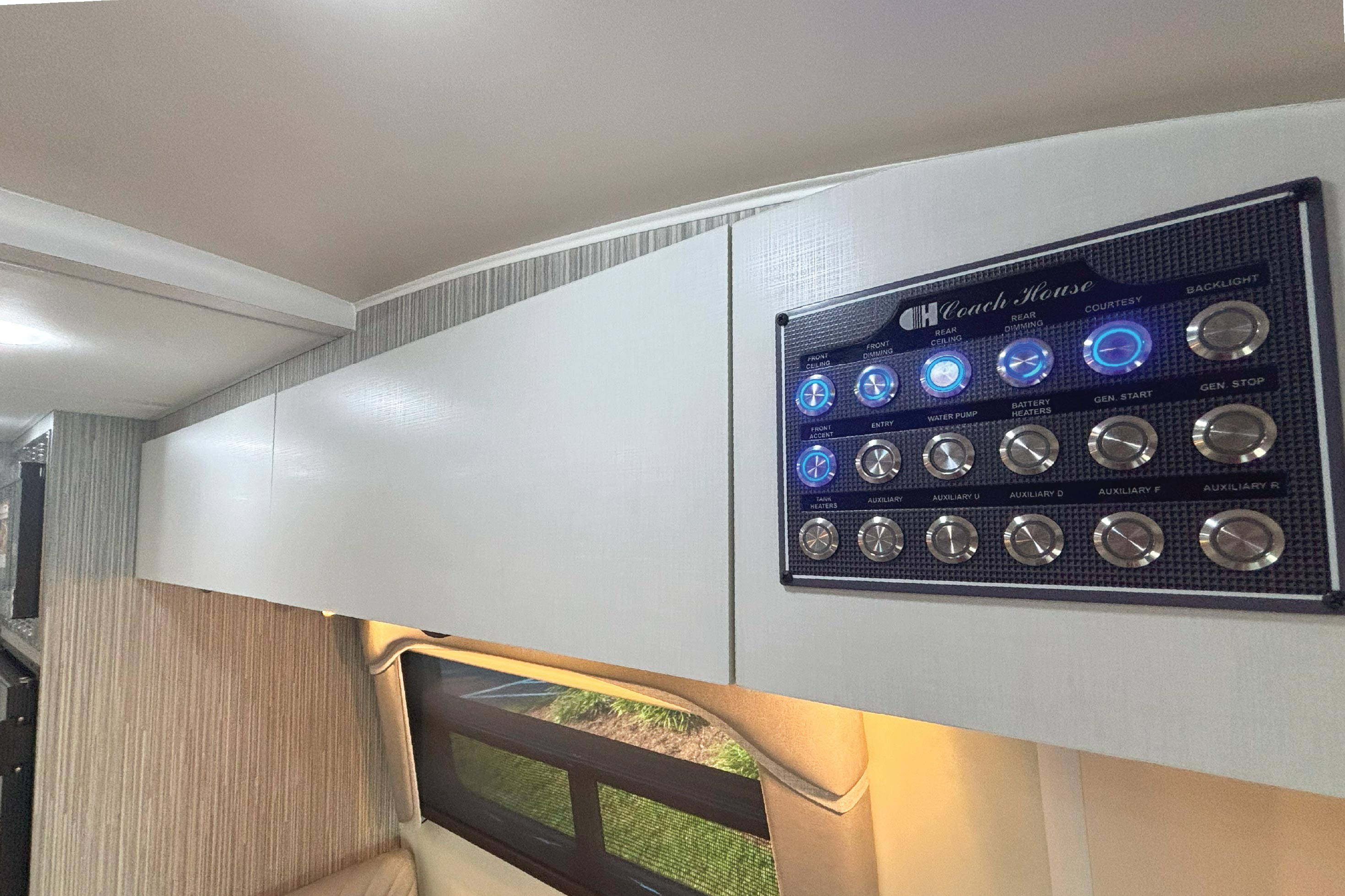

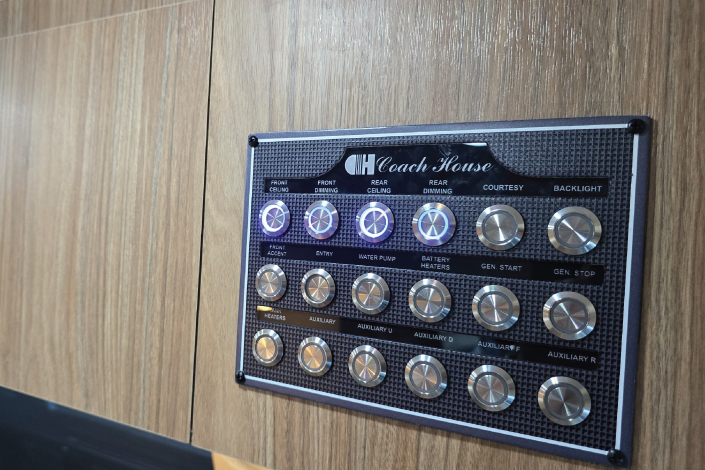

Analog switching with backlight panel	S	S
1 additional 200 watt solar battery charger	O	O
In-motion satellite system with receiver (Dish Network)	O	O

DIMENSIONS	H27 (TWIN)	H27 (QUEEN)
Wheelbase	176″	176″
Overall length	27′ 4″	27′ 4″
Overall width	8′ 0″	8′ 0″
Overall width with slide-out(s) extended	10′ 4″	12 5
Overall height including A/C	10′ 7″	10′ 7″
Interior headroom	6′ 3″	6′ 3″
GVWR (maximum weight of loaded vehicle) (pounds)	14,500	14,500
GCWR (maximum weight of loaded vehicle plus tow) (pounds)	22,000	22,000
Rear axle ratio	4.56:1	4.56:1
Interior storage (cu. ft.; varies by floor plan)	70.2	71.8
Exterior storage (varies by floor plan)	29.3	29.3

TANK CAPACITY	H27 (TWIN)	H27 (QUEEN
Fuel Tank (gallons)	55	55
Fresh water tank (gallons)	40	40
Grey water tank (gallons)	27	27
Black water tank (gallons)	25	25
Propane tank (pounds/gallons)	68/15	68/15

Available Decor for the Coach House Heritage

Heritage Base Specifications

Heritage (Ford E-450 Cab Chassis)

Ford E-450 Super Duty

Power and Control

Luxury accommodations wrapped in high-tech and high-performance features that’s the Coach House Heritage. The Heritage Ford E-450 Super Duty chassis features the highest GVWR in its class at 14,500lbs and a GCWR of 22,000, a brand new 7.3 Liter V-8 gas engine and 6-speed automatic transmission. This new engine provides 350 horsepower 465 foot pounds of torque. New safety features include Stability Control, automatic emergency braking, distance alert/indication, post impact braking, adaptive cruise control, lane departure warning, driver alert, auto high beam control. For your driving comfort, a navigation and entertainment system, satellite radio, color back-up camera, and all the chassis features are all standard.

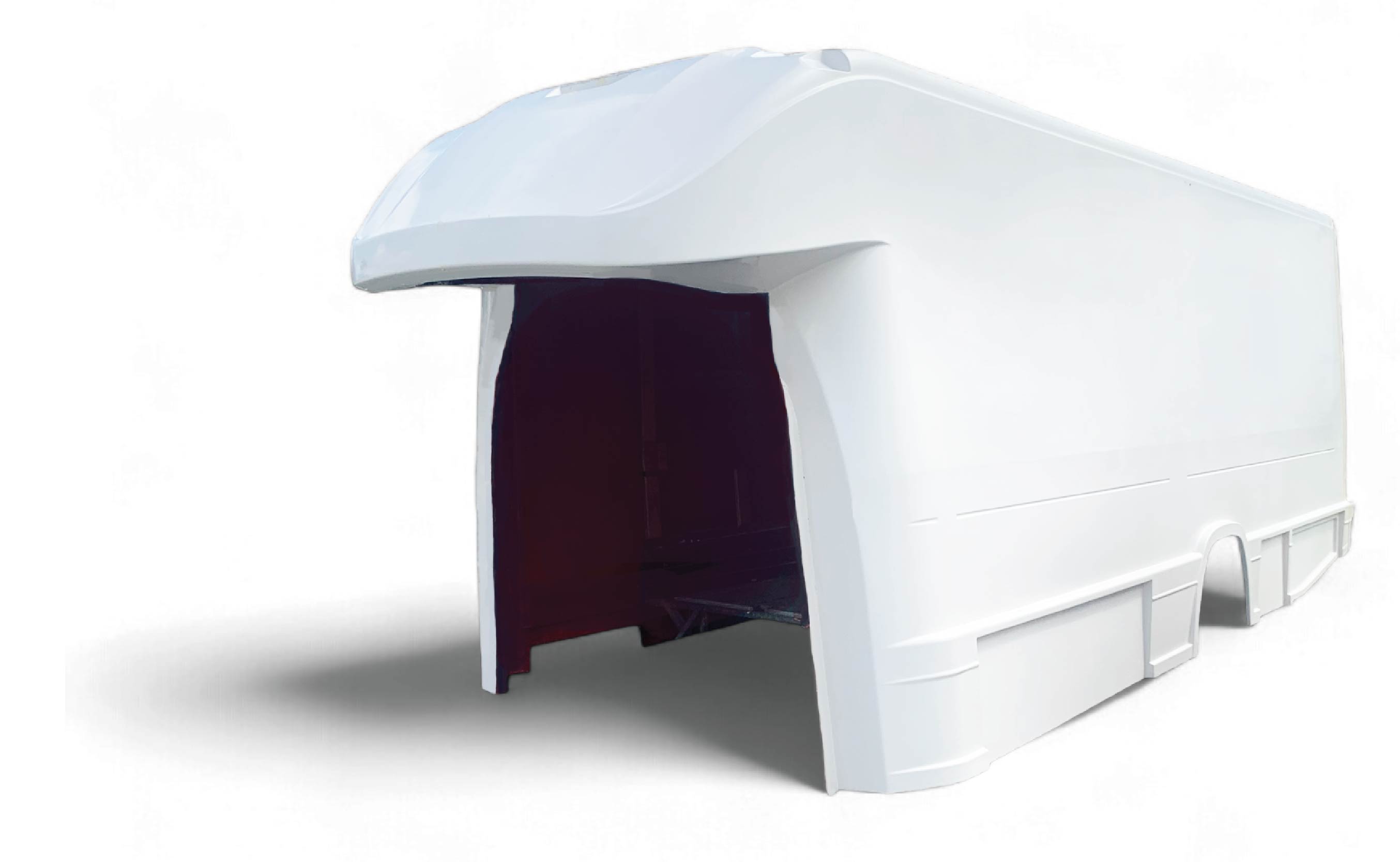

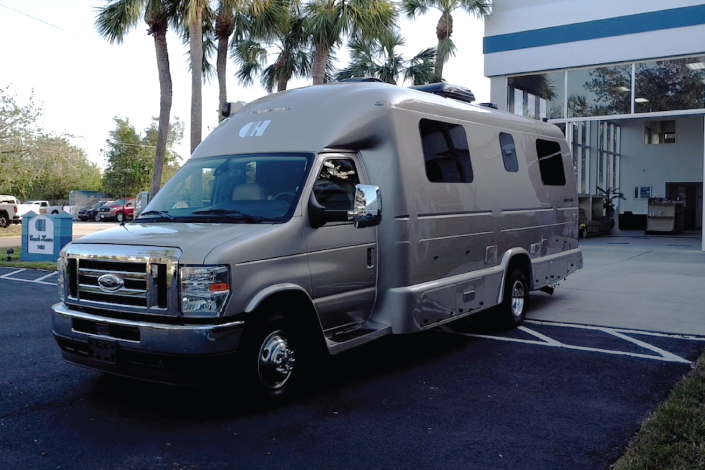

One-Piece Shell

One-Piece Hand-Laid Fiberglass Body

Nobody else builds a motorhome this way

Coach House motor homes are loaded with unique and exciting features. One that is probably the most exciting is our patented, one-piece hand-laid fiberglass body. The superstructure is reinforced with carbon fiber and designed to prevent water leaks, rattles and will give you years of trouble-free enjoyment. Most RV’s are built with many pieces joined together, and where they are joined represents a potential for failure. Our one-piece shell is stronger, more durable, quieter and safer than multi-piece designs, and its aerodynamic shape improves fuel efficiency.

DESIGNER INTERIORS

Take A Closer Look At The Heritage

Silver Oaks Interior Package

Walnut Interior Package

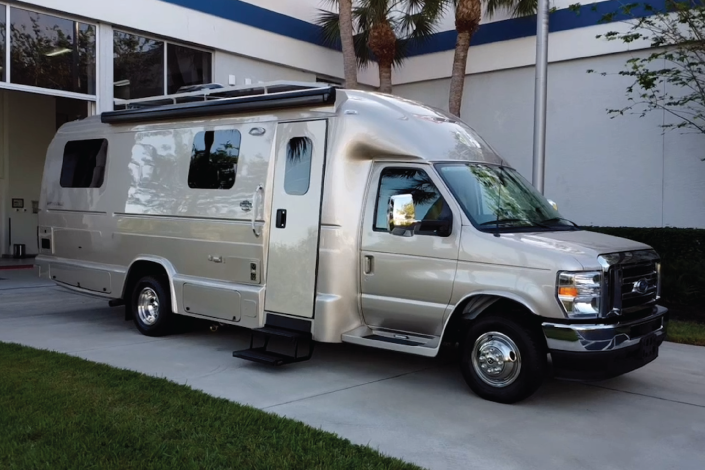

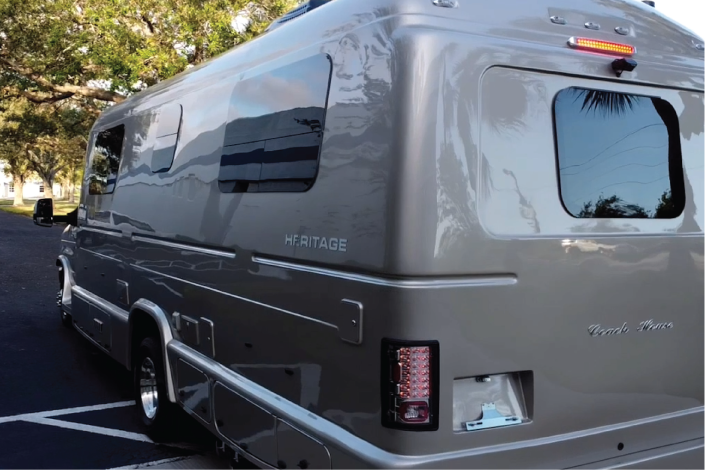

Exterior

Coach House Warranty

Peace of Mind – Guaranteed

Our warranty policies can be summed up simply: We stand behind our vehicles, period! Every component of a Platinum motorhome is covered by warranty: The Coach House conversion and the drive-train are covered for three years or 36,000 miles, whichever comes first. The appliances and fixtures are covered by their respective manufacturers for varying terms. Warranty service is available nationwide at the repair facility of your choice, or at the Coach House plant in Nokomis, Florida.
