NEW Coach House RV Specifications and Features
- Interior
- Exterior
- Heating & Cooling
- Galley
- Plumbing
- Electrical
- Dimensions
- Tank Capacity
| INTERIOR | 220 | 261-IV | 271-IV | 272-IV | 240 | 241XL | 250 | V24 |
|---|---|---|---|---|---|---|---|---|
| Cherry, Maple, Teak, Cafe’ or Cypress | S | S | S | S | S | S | S | S |
| Large overhead and wardrobe storage | S | S | S | S | S | S | S | S |
| Solid-surface counter tops | S | S | S | S | S | S | S | S |
| Flat-panel HD TV w/swing arm (sizes vary) | S | S | S | S | S | S | S | S |
| MCD day/night shade system | S | S | S | S | S | S | S | S |
| Premium floors | S | S | S | S | S | S | S | S |
| Medicine cabinet | S | S | S | S | S | S | S | S |
| Separate stand-up shower | S | S | S | S | S | S | S | S |
| Textured flooring | O | O | O | O | O | O | O | O |
| Hybrid Mattresses | S | S | S | S | S | S | S | S |
| Sound bar for front TV | O | O | O | O | O | O | O | - |
| Flat-panel HD TV in bedroom (some models) | O | O | O | O | O | O | O | S |

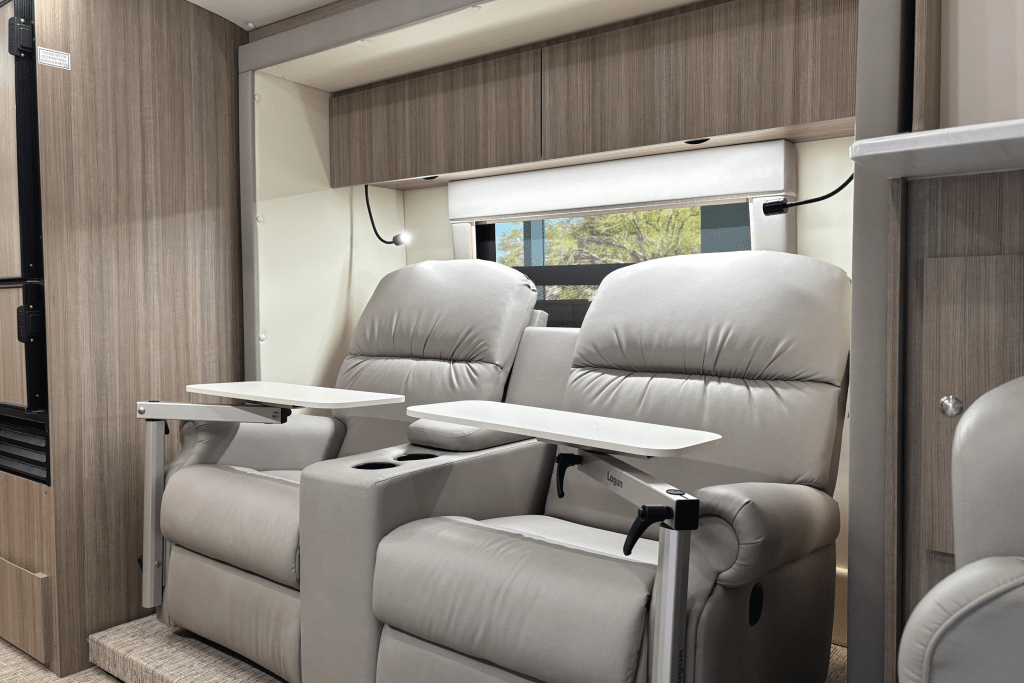

| Theater-style recliners | - | O | O | O | - | O | - | - |
| Side and rear entry screen door package | - | - | - | - | - | - | - | O |
| EXTERIOR | 220 | 261-IV | 271-IV | 272-IV | 240 | 241XL | 250 | V24 |
|---|---|---|---|---|---|---|---|---|
| Patented one-piece fiberglass body with carbon-fiber reinforcement | S | S | S | S | S | S | S | - |
| Electric entry step with light | S | S | S | S | S | S | S | - |
| HD TV antenna / with Wi-Fi | S | S | S | S | S | S | S | S |
| Heavy duty trailer hitch | S | S | S | S | S | S | S | S |
| Exterior fiberglass storage compartments | S | S | S | S | S | S | S | S |
| 1.5-inch square-tube aluminum floor frame | S | S | S | S | - | - | S | - |
| 4-inch channel aluminum floor frame | - | - | - | - | S | S | - | - |
| Stainless steel wheel simulators | S | S | S | S | S | S | - | S |
| Exterior hot and cold shower | S | S | S | S | S | S | S | S |
| Full-size heavy duty side entry door with screen | S | S | S | S | S | S | S | - |
| Cable TV jack | S | S | S | S | S | S | S | S |
| HWH hydraulic slideout (2 in some models) | - | S | S | S | - | S | - | - |
| Automatic hydraulic leveling system | O | S | S | S | O | O | O | - |
| MOR/ryde rear suspension | - | S | S | S | - | - | - | - |
| Frameless jalousie windows | S | S | S | S | S | S | S | S |
| Rear protective skid wheels | S | S | S | S | S | S | S | S |
| Legless power awning w/ LED lights | S | S | S | S | S | S | S | S |
| Basic two-tone full-body paint | S | S | S | S | S | S | S | - |
| Safety-Plus | O | S | S | S | - | - | - | - |
| Alcoa aluminum rims | O | O | O | O | O | O | - | O |
| Full-body paint (Deluxe) | O | O | O | O | O | O | O | - |
| HEATING/COOLING | 220 | 261-IV | 271-IV | 272-IV | 240 | 241XL | 250 | V24 |
|---|---|---|---|---|---|---|---|---|
| 15,000-Btu ducted roof air conditioner w/ heat pump | S | S | S | S | S | S | S | S |
| 30,000-Btu auto LP gas furnace (19,000 BTU Arriva) | S | S | S | S | S | S | S | S |
| Two power roof vents with covers | S | S | S | S | S | S | S | S(1) |
| Heavy-duty insulation | S | S | S | S | S | S | S | S |
| Heated holding tanks | S | S | S | S | S | S | S | S |
| GALLEY | 220 | 261-IV | 271-IV | 272-IV | 240 | 241XL | 250 | V24 |
|---|---|---|---|---|---|---|---|---|
| Two or three burner LP gas stove (see floor plans) | S | S | S | S | S | S | S | S |
| Stainless steel range hood | S | S | S | S | S | S | S | - |
| Stainless convection/microwave oven | S | S | S | S | S | S | S | S |
| Recessed stainless kitchen sink w/cover | S | S | S | S | S | S | S | S |
| 2-way AC/LPG absorption refrigerator | O | O | O | O | O | O | O | O |
| 2-way AC/DC compressor refrigerator | O | O | O | O | O | O | O | O |
| Spacious pantry (n/a on some floorplans) | S | S | S | S | S | - | S | S |
| PLUMBING | 220 | 261-IV | 271-IV | 272-IV | 240 | 241XL | 250 | V24 |
|---|---|---|---|---|---|---|---|---|
| 4 Season all-weather interior plumbing | S | S | S | S | S | S | S | S |
| Large propane tank | S | S | S | S | S | S | S | S |
| External quick disconnect for LPG grill | S | S | S | S | S | S | S | S |
| On-demand propane water heater | S | S | S | S | S | S | S | S |
| Porcelain flush toilet w/ sprayer | S | S | S | S | S | S | S | S |
| Demand fresh water system | S | S | S | S | S | S | S | S |
| City water connection | S | S | S | S | S | S | S | S |
| Black Water Flush | S | S | S | S | S | S | S | S |
| Universal utility compartment | S | S | S | S | S | S | S | S |
| ELECTRICAL | 220 | 261-IV | 271-IV | 272-IV | 240 | 241XL | 250 | V24 |
|---|---|---|---|---|---|---|---|---|
| 110v/12v 45-amp converter | S | S | S | S | S | S | S | S |
| Ample 110v outlets (some with USB) | S | S | S | S | S | S | S | S |
| 4.0kw generator | S | S | S | S | - | - | S | - |
| 3.6kw LPG generator | - | - | - | - | S | S | - | S |
| Interior and exterior LED lighting | S | S | S | S | S | S | S | S |
| Carbon monoxide, LP gas, and smoke detectors | S | S | S | S | S | S | S | S |
| Emergency start switch | S | S | S | S | S | S | S | S |
| Lithium Ion Battery System | S | S | S | S | S | S | S | S |
| Auxiliary battery disconnect | S | S | S | S | S | S | S | S |
| 25-foot shore power cord | S | S | S | S | S | S | S | S |
| Exterior 110v outlet | S | S | S | S | S | S | S | S |
| Porch, compartment, and entry lights | S | S | S | S | S | S | S | S |
| Navigation system | S | S | S | S | S | S | S | S |
| 2000 Watt pure sine wave inverter | S | S | S | S | S | S | S | S |
| Color back-up video camera and monitor | S | S | S | S | S | S | S | S |
| XM/Sirius satellite radio-ready | S | S | S | S | S | S | S | S |
| Auto start generator | S | S | S | S | S | S | S | S |
| 200-watt solar battery charger | S | S | S | S | S | S | S | S |
| Analog switching with backlight panel | S | S | S | S | S | S | S | S |
| 1 additional 200 watt solar battery charger | - | O | O | O | O | O | O | - |
| In-motion satellite system with receiver (Dish or Direct) | O | O | O | O | O | O | O | O |
| DIMENSIONS | 220 | 261-IV | 271-IV | 272-IV | 240 | 241XL | 250 | V24 |
|---|---|---|---|---|---|---|---|---|
| Wheelbase | 158″ | 176″ | 176″ | 176″ | 170″ | 170″ | 178″ | 170″ |
| Overall length | 23′ 2″ | 27′ 8″ | 27′ 8″ | 27′ 8″ | 25′ 9″ | 25′ 9″ | 25′ 6″ | 24′ 2″ |
| Overall width | 8′ 0″ | 8′ 0″ | 8′ 0″ | 8′ 0″ | 8′ 0″ | 8′ 0″ | 8′ 0″ | 6′ 6.5″ |
| Overall width with slide-out(s) extended | - | 10′ 4″ | 10′ 4″ | 12′ 5″ | - | 10' | - | - |
| Overall height including A/C | 10′ 5″ | 10′ 7″ | 10′ 7″ | 10′ 7″ | 10′ 7″ | 10′ 7″ | 10′ 5″ | 9′ 7″ |
| Interior headroom | 6′ 3″ | 6′ 6″ | 6′ 6″ | 6′ 6″ | 6′ 4″ | 6′ 4″ | 6′ 4″ | 6′ 2″ |
| GVWR (maximum weight of loaded vehicle) (pounds) | 14,500 | 14,500 | 14,500 | 14,500 | 11,030 | 11,030 | 11,000 | |
| GCWR (maximum weight of loaded vehicle plus tow) (pounds) | 22,000 | 22,000 | 22,000 | 22,000 | 15,250 | 15,250 | 15,000 | 15,250 |
| Rear axle ratio | 4.56:1 | 4.56:1 | 4.56:1 | 4.56:1 | 4.18:1 | 4.18:1 | 3.73:1 | 3.92:1 |
| Interior storage (cu. ft.; varies by floor plan) | 48 | 75.4 | 70.2 | 71.8 | 52 | 52 | 52 | NA |
| Exterior storage (varies by floor plan) | 13.5 | 29.3 | 29.3 | 29.3 | 22.7 | 22.7 | 23 | NA |
| TANK CAPACITY | 220 | 261-IV | 271-IV | 272-IV | 240 | 241XL | 250 | V24 |
|---|---|---|---|---|---|---|---|---|
| Fuel Tank (gallons) | 55 | 55 | 55 | 55 | 26.4 | 26.4 | 25 | 26.4 |
| Fresh water tank (gallons) | 31 | 40 | 40 | 40 | 31 | 31 | 31 | 31 |
| Grey water tank (gallons) | 28 | 27 | 27 | 27 | 28 | 28 | 28 | 20 |
| Black water tank (gallons) | 27 | 25 | 25 | 25 | 25 | 25 | 19 | 13 |
| Propane tank (pounds/gallons) | 68/15 | 68/15 | 68/15 | 68/15 | 68/15 | 68/15 | 55/12 | 55/12 |
AVAILABLE FLOORPLANS
PLATINUM 220
VIEW MORE DETAILS
Platinum 261-IV
VIEW MORE DETAILS
Platinum 271-IV
VIEW MORE DETAILS
Platinum 272-IV
VIEW MORE DETAILS
PLATINUM II 240
VIEW MORE DETAILS
PLATINUM II 241XL
VIEW MORE DETAILS
PLATINUM III 250 ST
VIEW MORE DETAILS
PLATINUM III 250 DT
VIEW MORE DETAILS
ARRIVA V-24

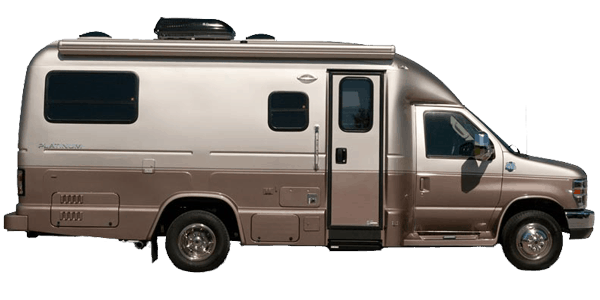

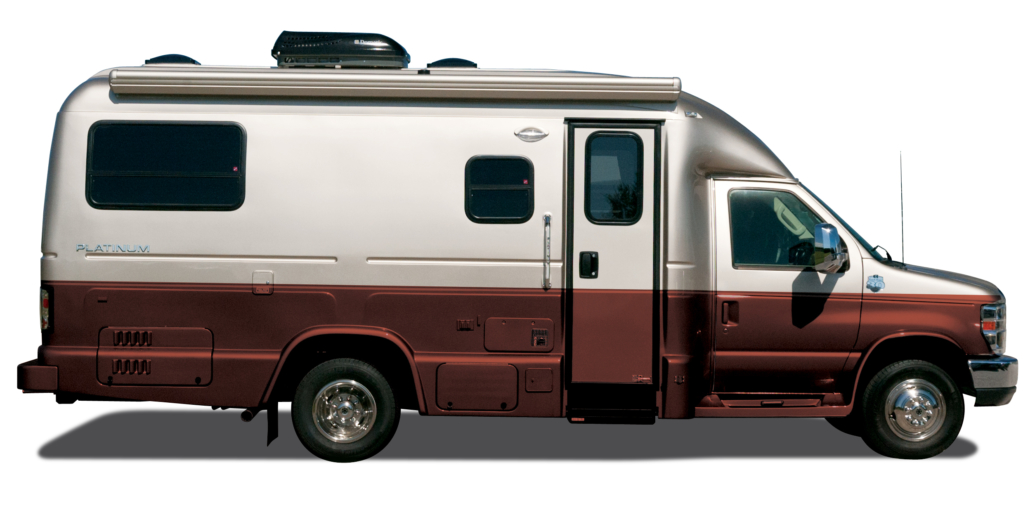

VIEW MORE DETAILSAvailable Paint & Decor for the Coach House Platinum
Full Body Custom Paint On All Models With Designer Fabrics & Surfaces For Interior

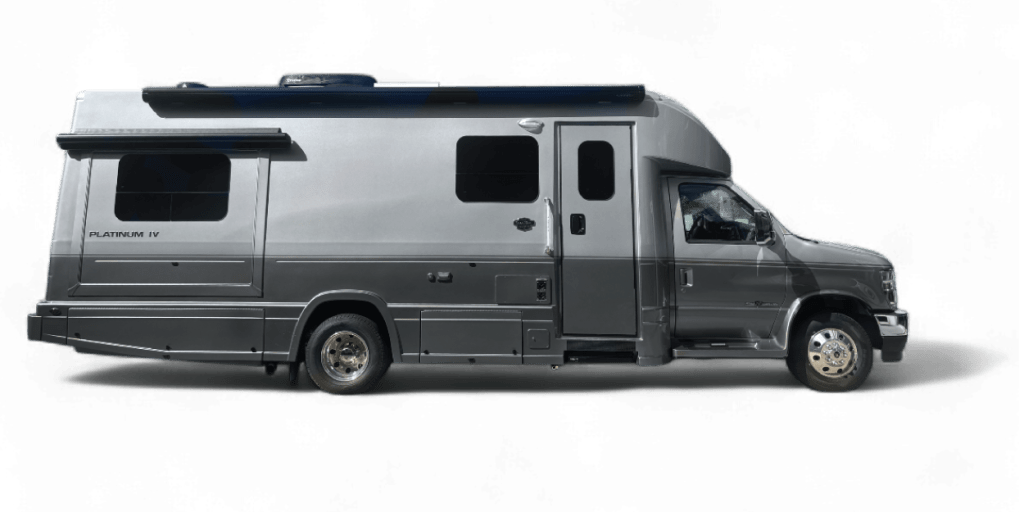

Basic Paint Included:
Color: Shadow

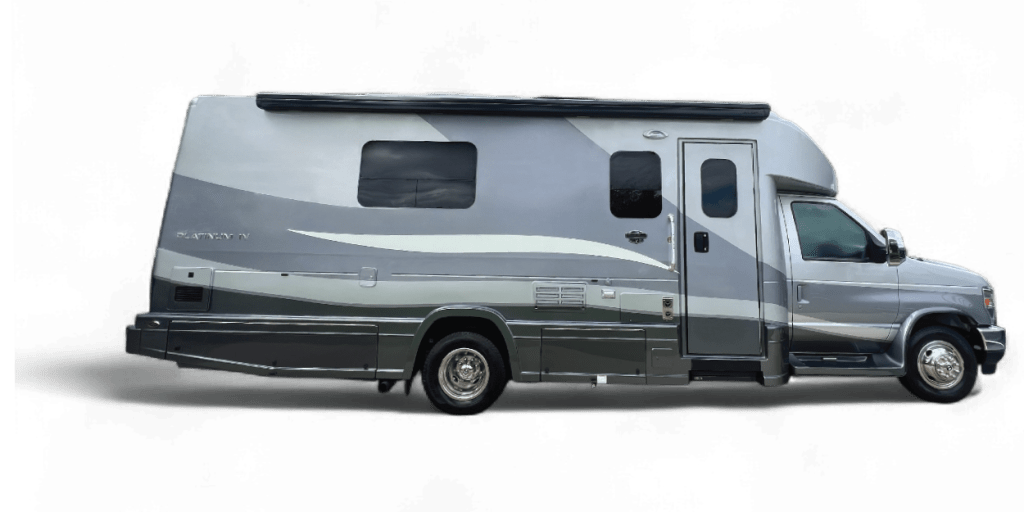

Color: Indigo BlueDeluxe Paint Additional Charge:
Color: Sterling
Color: Desert
Color: Chestnut

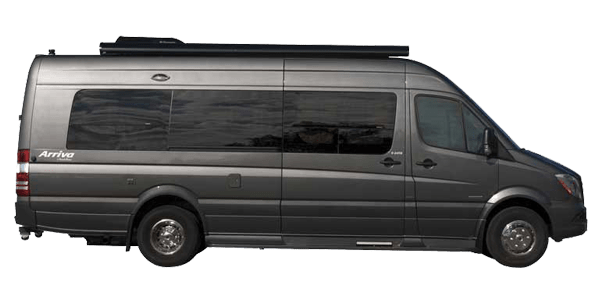

Color: SunsetAvailable Paint & Decor for the Coach House Arriva
Factory Body Paint In Two Color Options:

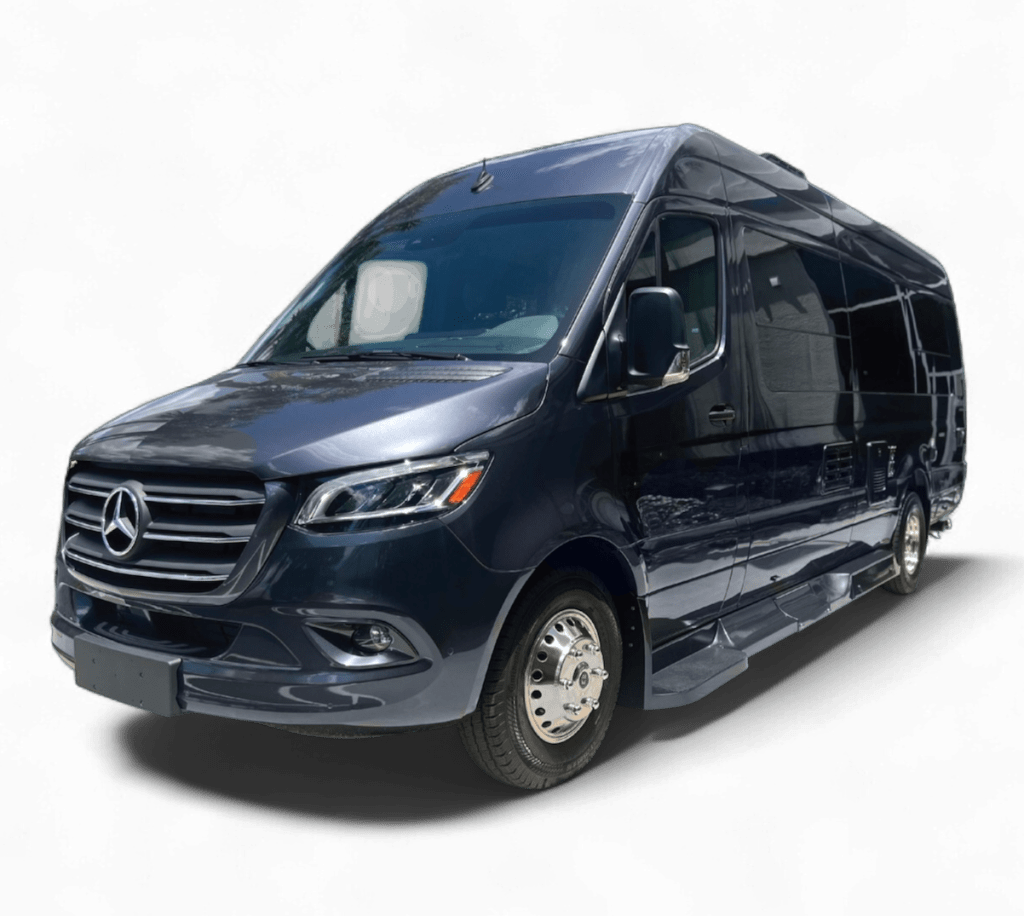

Color: Tenorite Grey

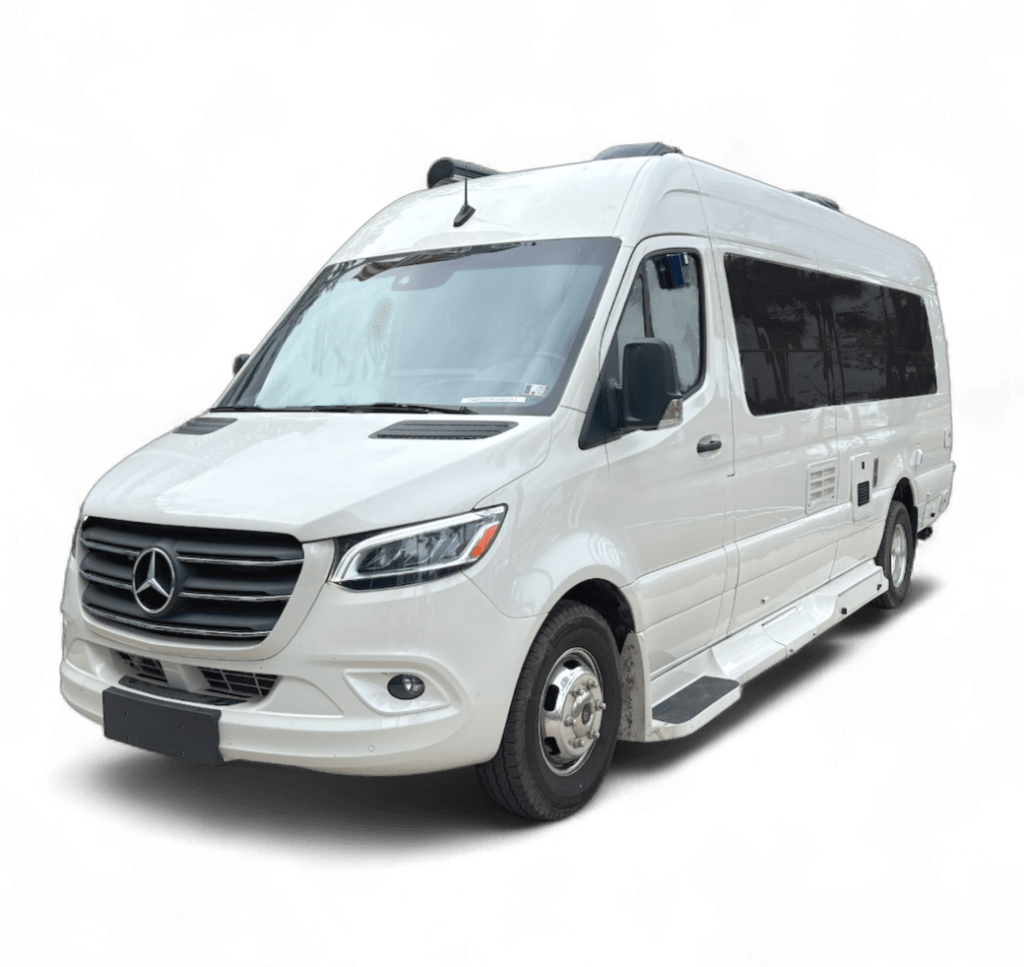

Color: Ivory

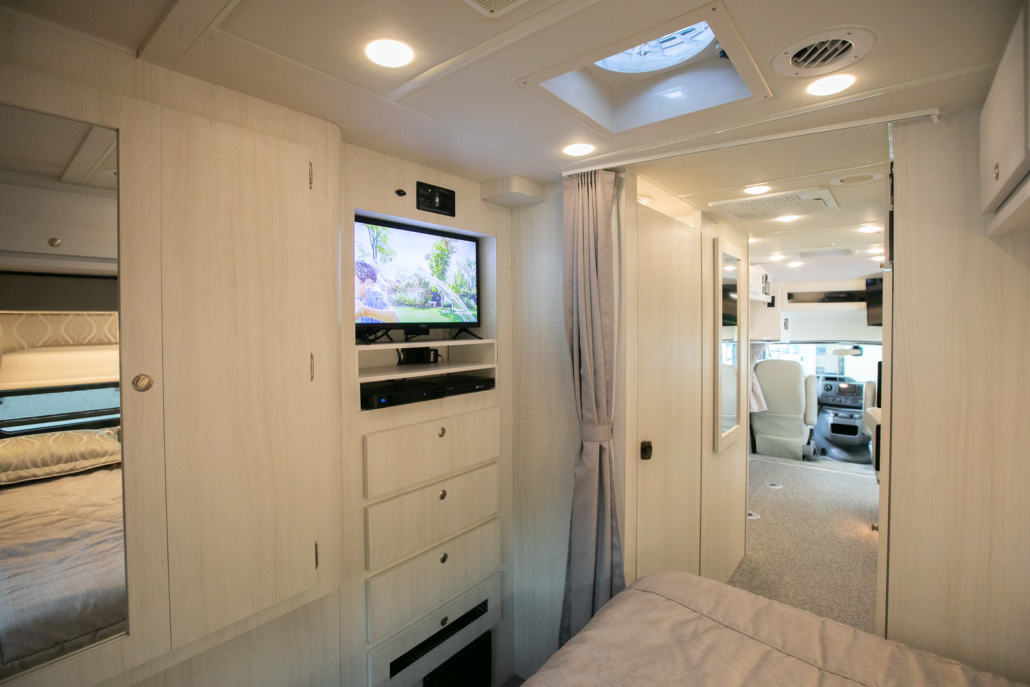

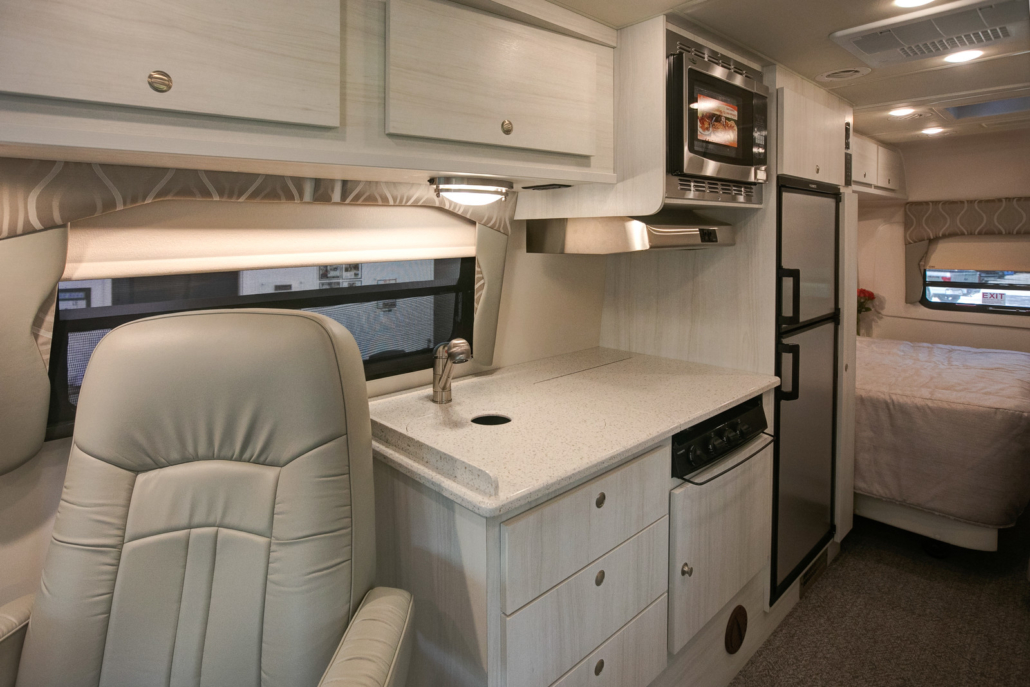

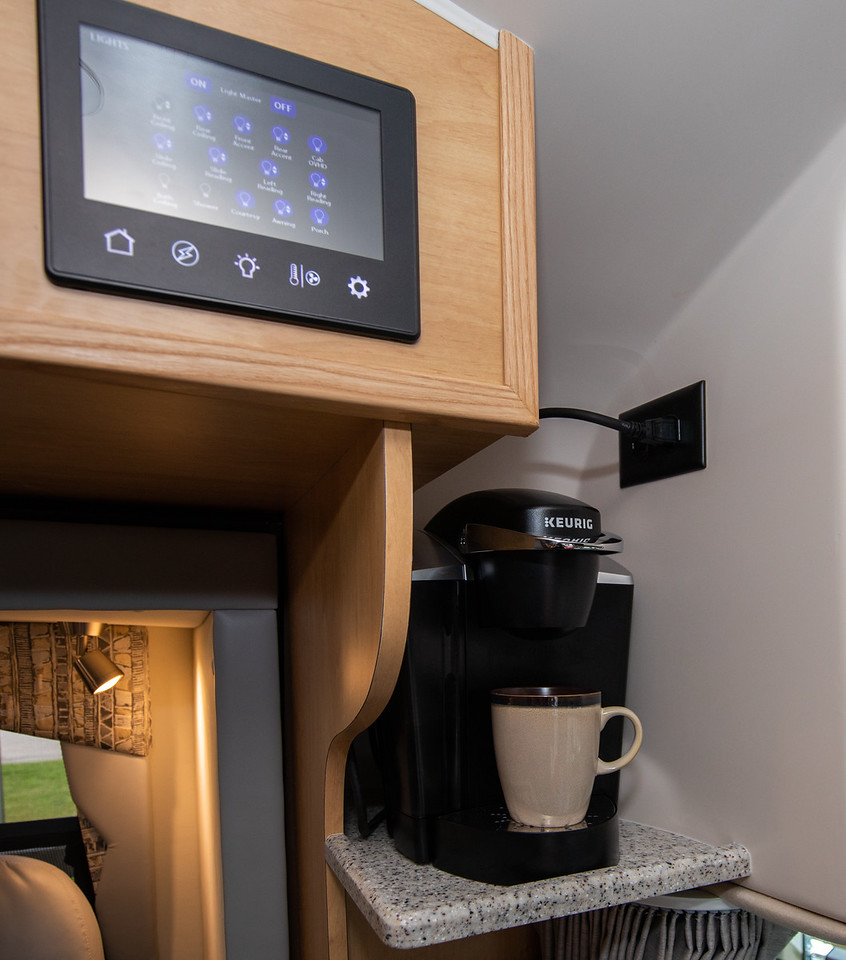

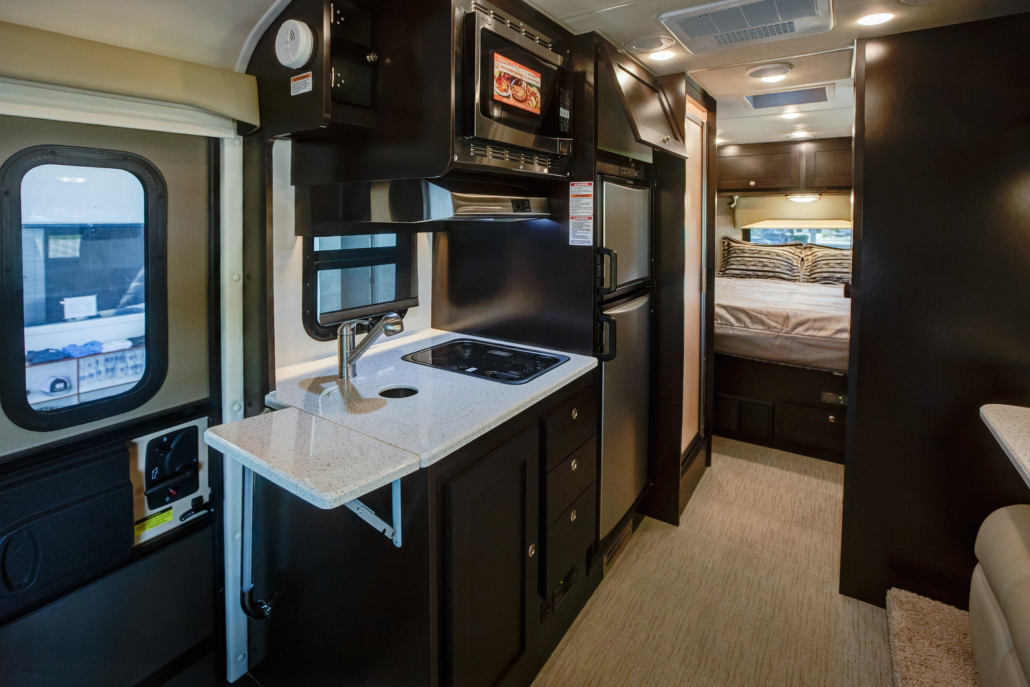

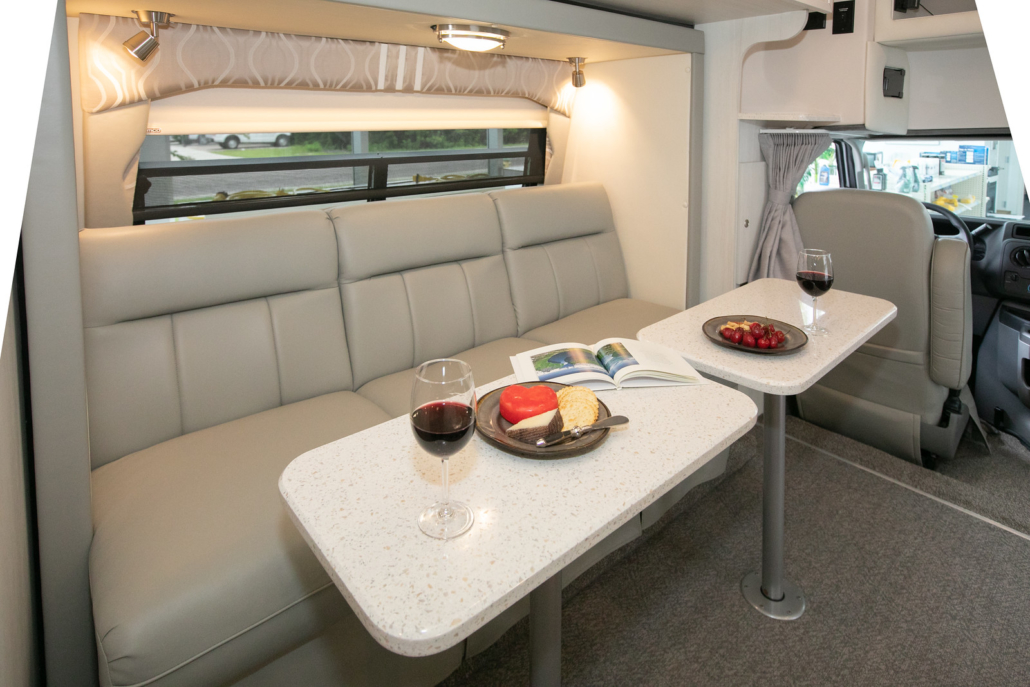

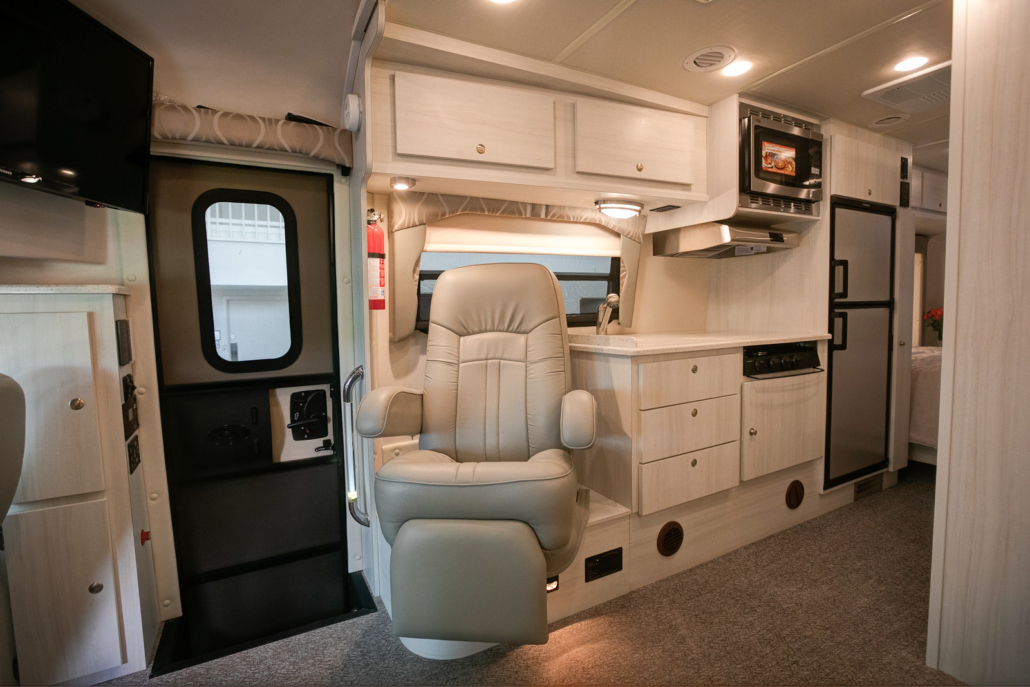

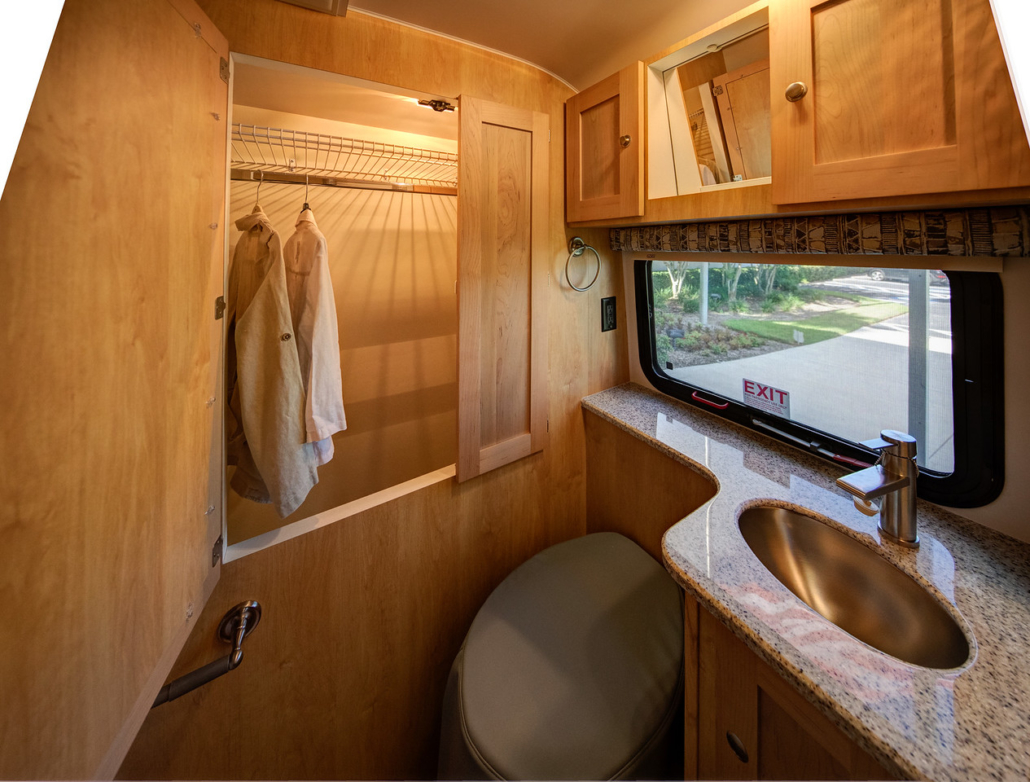

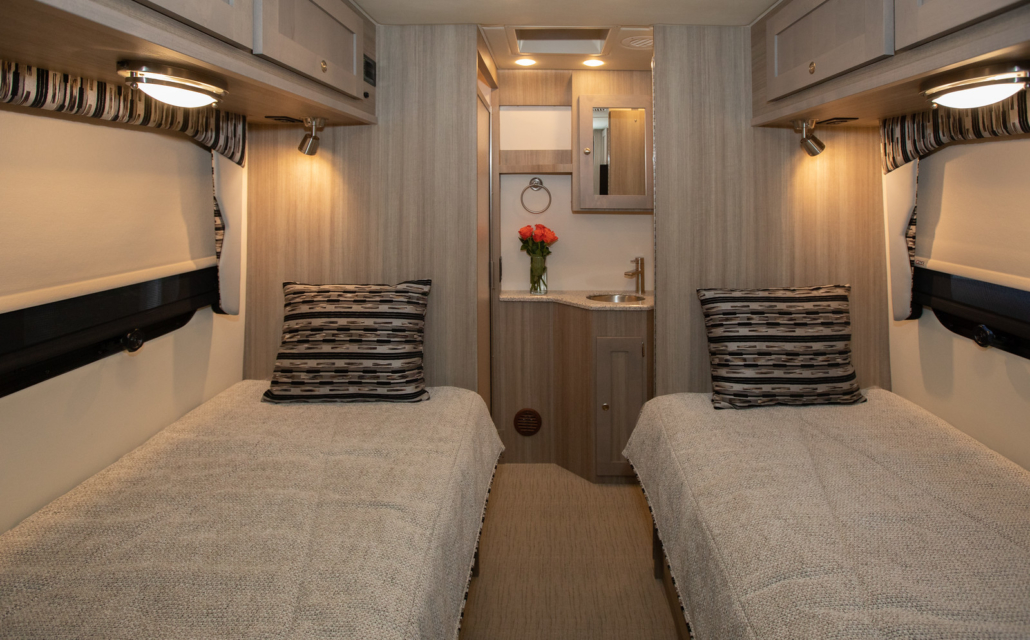

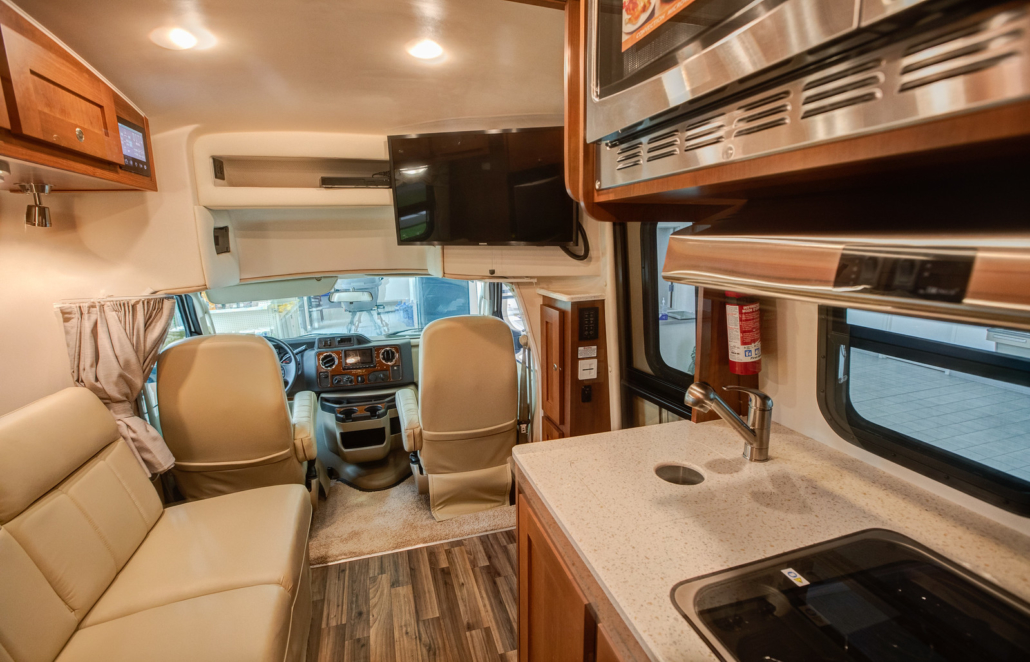

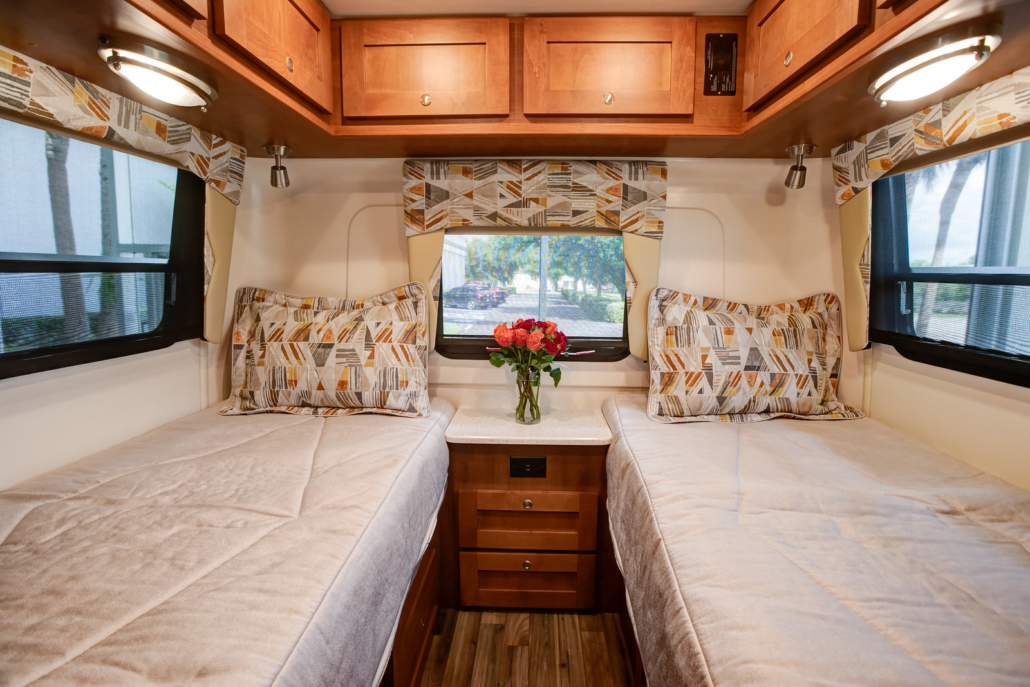

GALLERY
Cafe’ Decor
CHERRY DECOR

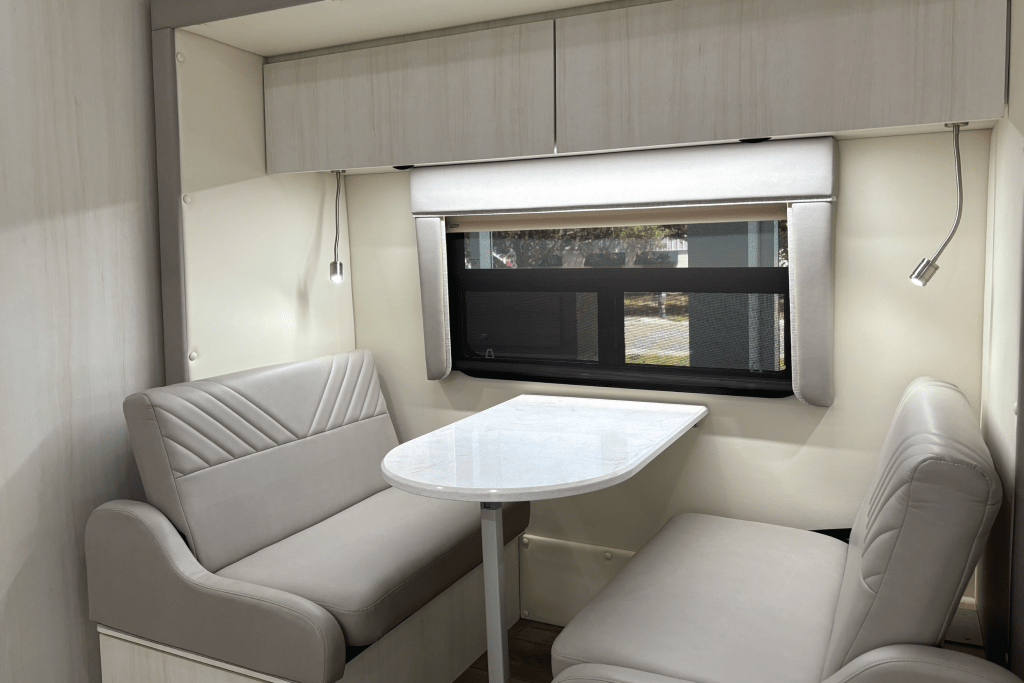

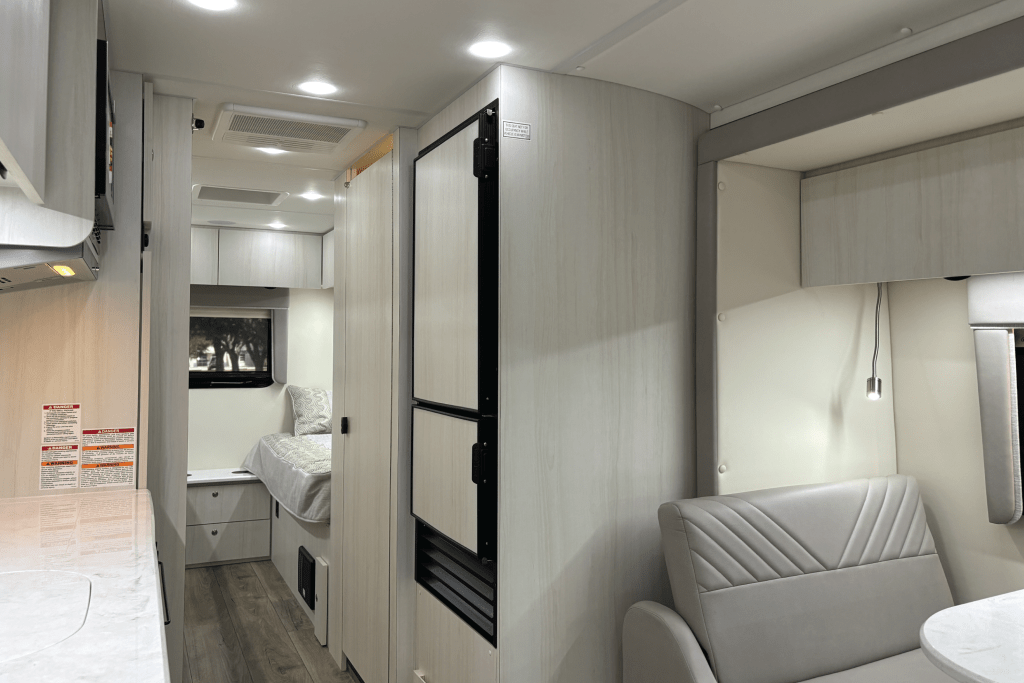

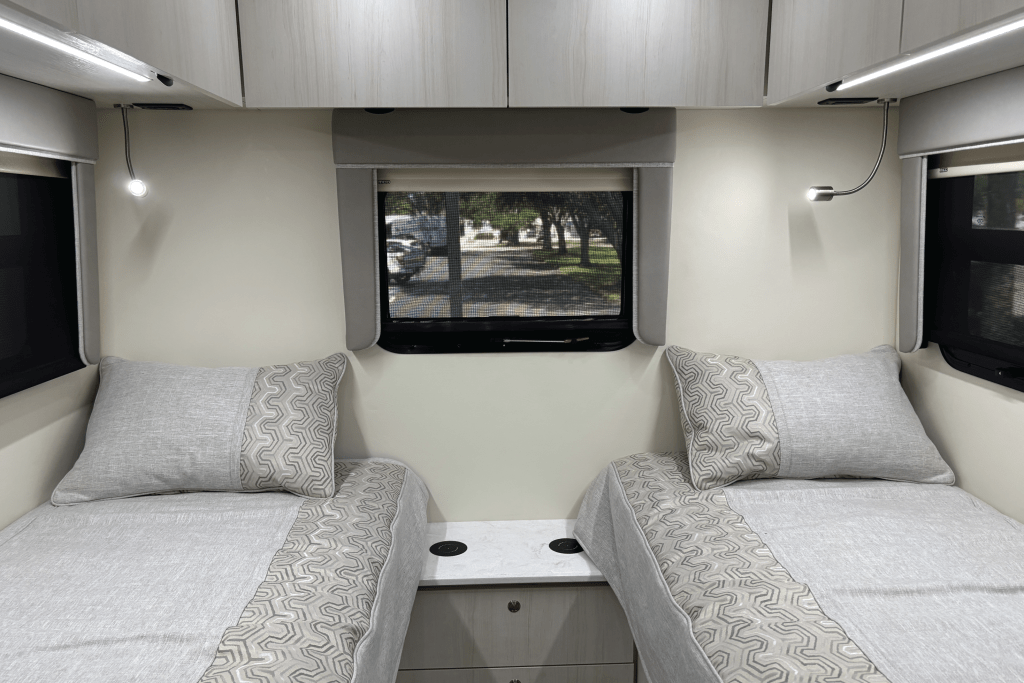

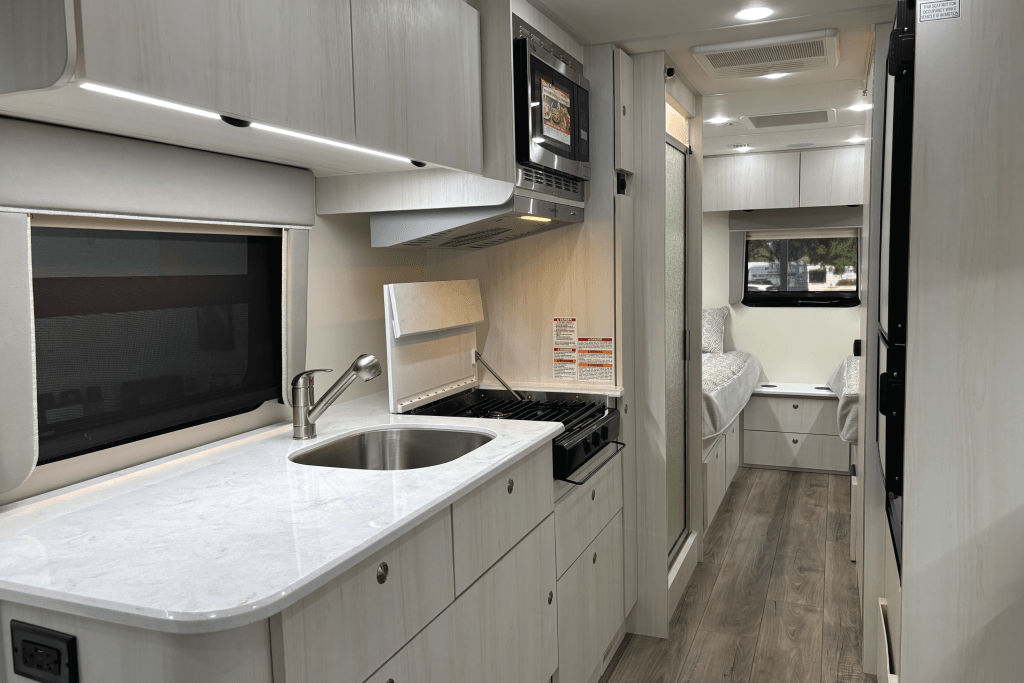

CYPRESS DECOR
MAPLE DECOR

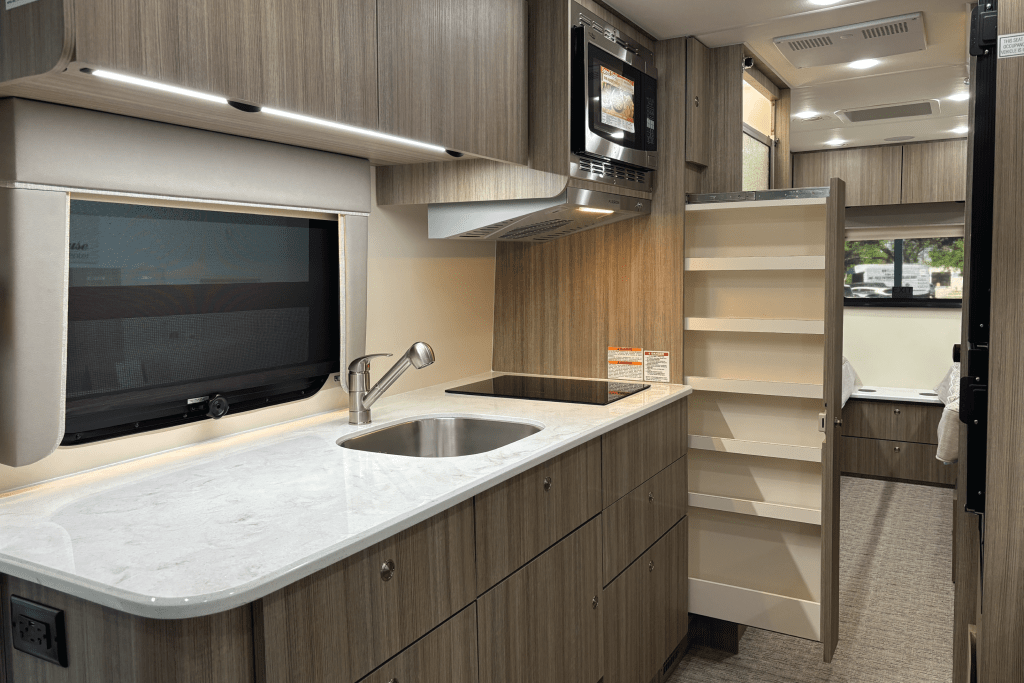

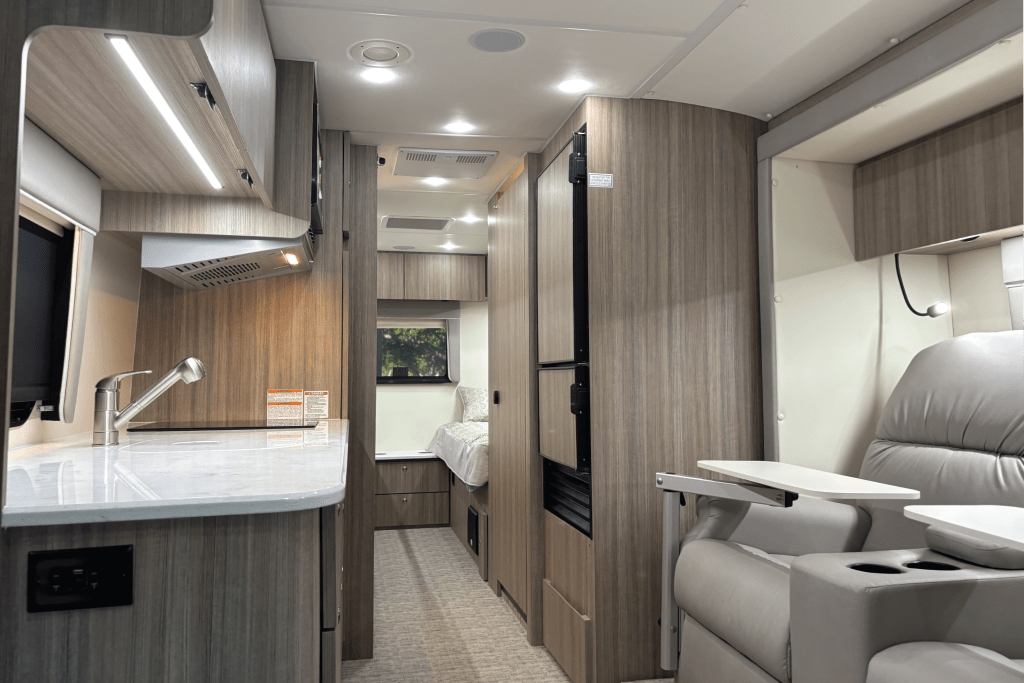

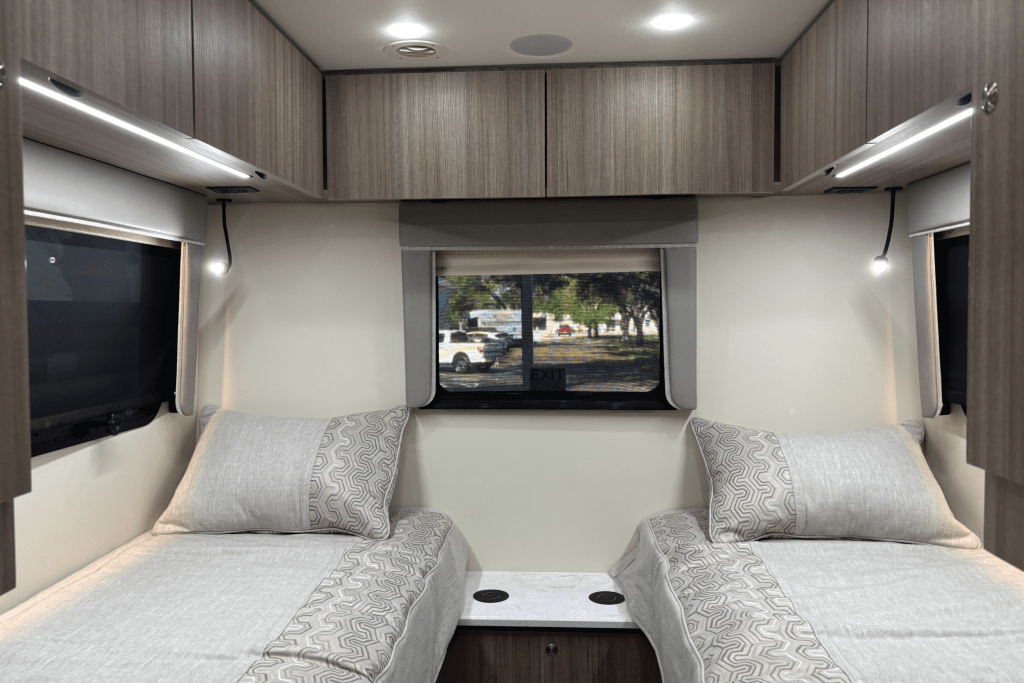

TEAK DECOR
